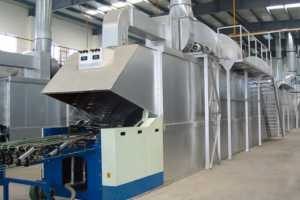

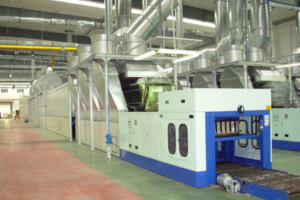

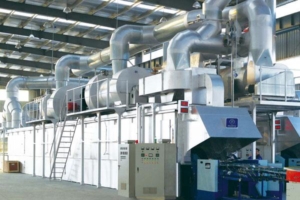

Iron Printing Paint Drying Room
This equipment is mainly used for drying after printing or coating on the surface of metal sheets. The whole line is mainly composed of conveying, feeding device, drying, cooling, unloading and accumulation.The main heating energy can be applied: electricity, city gas, petroleum liquefied gas, natural gas, diesel oil, kerosene, coal-fired hot stove and other energy sources can also be used.Imported PLC and frequency conversion controller are adopted to realize shaftless transmission to ensure the synchronization of feeding, printing, unloading, receiving and conveying.The front and rear transmissions are closed and beautiful in shape.Unloading protection, conveyor chain tensioning, and metal sheet alignment are all realized by pneumatic control.
Technical Advantages
This equipment is mainly used for drying after printing or coating on the surface of metal sheets. The whole line is mainly composed of conveying, feeding device, drying, cooling, unloading and accumulation.The main heating energy can be applied: electricity, city gas, petroleum liquefied gas, natural gas, diesel oil, kerosene, coal-fired hot stove and other energy sources can also be used.
Imported PLC and frequency conversion controller are adopted to realize shaftless transmission to ensure the synchronization of feeding, printing, unloading, receiving and conveying.
The front and rear transmissions are closed and beautiful in shape.
Unloading protection, conveyor chain tensioning, and metal sheet alignment are all realized by pneumatic control.
While the iron feeding conveying part adopts stepless speed change, it also adopts vacuum adsorption and servo system to implement buffering, so as to ensure that the metal sheet will not be damaged or scratched during high-speed conveying.
It is fixed by sliding guide rails, so that the heating and cooling can be expanded and contracted freely.
The sliding rollers of the conveyor chain do not need to be lubricated and can run smoothly.
The temperature of each temperature zone of the drying tunnel is easy to adjust, and even, with little fluctuation.
The main technical parameters:
| Applicable to the largest sheet metal specification | 1145×965(mm) |
| Applicable minimum sheet metal specification | 712×508(mm) |
| Sheet metal thickness | 0.16～0.50(mm) |
| working temperature | 225(℃) |
| production capacity | 100(p/min) |
| Stack iron maximum weight | 2(t) |
| Drying tunnel length | 21000～36000(mm) |
| cooling length | 4663～6963(mm) |
| combustion chamber | 2～3(unit) |
| Total installed capacity | 54～73(kw) |
| Dimensions (LXWXH) | (35000～52300)×3300×5000(mm) |
Why to chooes ISHIN products?
- Established 20 years ago, ISHIN technology is a well-known brand in the Chinese industry.
- More than 80% of customers in China have used ISHIN products.
- ISHIN technology has a strong technical team and professional after-sales service to provide customers with turnkey project and one-stop service.
- Once choosing ISHIN technology products, ISHIN technology will provide you with the most professional technical advice and guidance from material selection, printing and typesetting, installation, commissioning to smooth production
