The production line is suitable for the semi-automatic production of 10 liters to 25 liters’conical pail. total power: approx.90KW,total floor space: 80㎡ .total length:approx.16 meters. total manpower: 9-10 people. Production capacity: 12-16cpm. Pail height range: 270-500mm. Pail diameter range:210-300mm

Working Process:Semi-automatic Slitting→Automatic Rounding→Semi-automatic rear-feeding Seam Welding→Semi-automatic Tapering Machine→Semi-automatic Flanging and Curling→Semi-automatic Sealing→Semi-automatic Curling and Beading→Automatic feeding double ear welder.

What is a conical pail?

It is made of three pieces of metal sheet (mostly tinplate), the body, the bottom and the lid of the Cans. The cans is conical. The tank body has two ribs, Range of drums: capacity 10-25l, diameter210-300mm, height 270-500mm.

Equipment composition of semi-automatic 10-25l conical pail can production line

GT1B5B Can Slitting Machine

Semi Auto 10-25L Conical Round Can production line-1
Maximum thickness of cutting iron sheet  0.18-0.5mm
Maximum width of cutting iron sheet 1000-1250mm
Minimum width of cutting sheet 40mm
Motor Power 1.65KW
Dimensions(L*W*H) (1470)1720×1000×1100mm
Device Weight 1200-1500KG

Automatic Rolling Machine

Semi Auto 10-25L Conical Round Can production line-2
Power supply AC380V/50HZ
total power 0.75KVA
thickness 0.2-0.4mm
pneumatic system pressure 40L/min Mpa
can height range 120-400mm
diameter range Φ105-286mm
rounding speed 40m/min
Dimensions(L*W*H) 1500*700*1500mm

Rear-feeding seam welder machine

Semi Auto 10-25L Conical Round Can production line-3
WeldingSpeed: 6~12m/min(weldingpowerfrequency:50~240Hz)
Capacity: 10~50cans/min
Diameter: Φ52~180mm、Φ65~290mm
Height: 70~270mm、70~420mm
Material: 50#~100#Tinplateplate、steelbaseplate
Thickness: 0.18~0.38mm
Overlap:  0.4~1.2mm
Controlway: PLC
Coolingwater: ≤20℃
Waterflow: 20L/min
Waterpressure: 5kg/cm²
Installationcapacity: 16KVA
Dimensions(L*W*H) 1350×1450×1900mm
Device Weight 1200kg

3TA20 Hydraulic Tapering Machine

Semi Auto 10-25L Conical Round Can production line-4
thickness ≤0.5mm
diameter range 210—300mm
can height range 270—500mm
production capacity 12-16cpm
Motor Power 7.5KW
Device Weight 1000KG
Dimensions(L*W*H) 1300×780×1150mm

3TB20 Hydraulic Pre-curling and Flanging Machine

Semi Auto 10-25L Conical Round Can production line-5
thickness ≤0.5mm
diameter range 210—300mm
can height range 270—500mm
production capacity 12-16cpm
Motor Power 5.6KW
Device Weight 860KG
Dimensions(L*W*H) 1300×700×1750mm

GT4A39 Pneumatic round can seamer

Semi Auto 10-25L Conical Round Can production line-6
thickness ≤0.4mm
diameter range 220-300mm
can height range ≤400mm
production capacity 15-20cpm
Motor Power 2.2KW
Device Weight 980KG
Dimensions(L*W*H)  980*580*1900mm

3TC20 Hydraulic Curling Beading Machine

Semi Auto 10-25L Conical Round Can production line-5
thickness ≤0.5mm
diameter range 210—300mm
can height range 270—500mm
production capacity 12-16cpm
Motor Power 5.6KW
Device Weight 1000KG
Dimensions(L*W*H)  1470 × 940 × 1980mm

Auto feeding Double spot welder

Auto feeding Double spot welder
production capacity 20-25cpm
electrode pressure 1250N
diameter range Φ220-300mm
load rate 20%
primary current 100A(Instantaneous)
air pressure 0.5Mpa
air consumption 200L/min
Device Weight 380KG
Dimensions(L*W*H) 1300*1000*1050mm
total power 50KVA
Power supply 380-440V

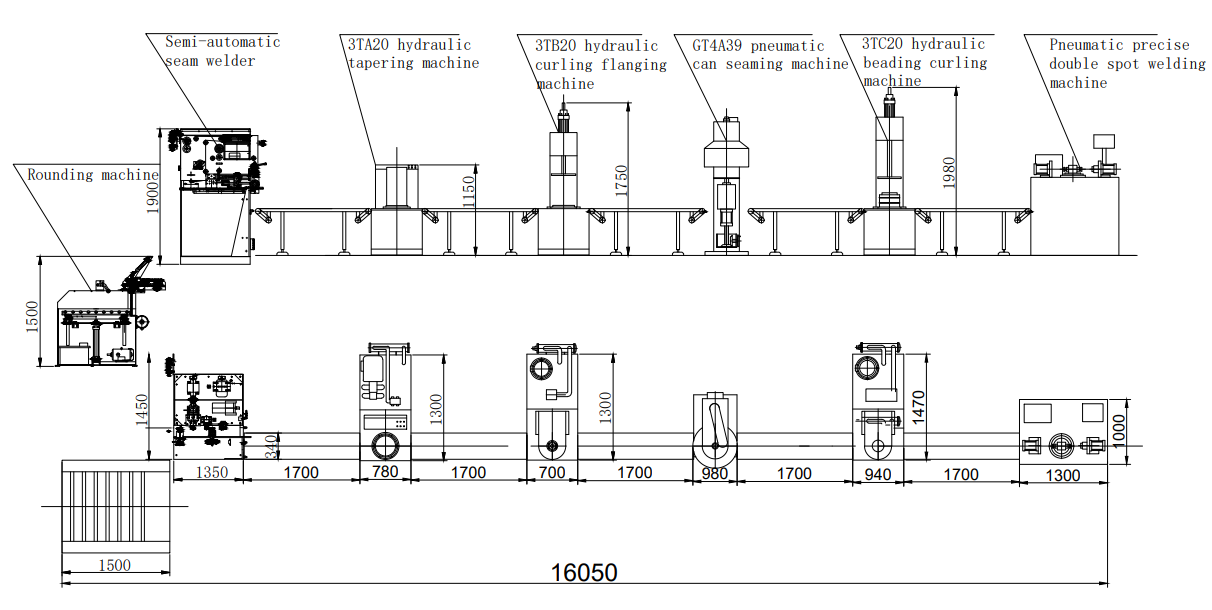

The layout of the production line

Tin can making artcraft

Tin can making artcraft

The following products are produced by this equipment

Semi-Auto-10-25L-Conical-Round-Can-production-line-Application-1
Semi-Auto-10-25L-Conical-Round-Can-production-line-Application-2
Semi-Auto-10-25L-Conical-Round-Can-production-line-Application-3
Semi-Auto-10-25L-Conical-Round-Can-production-line-Application-4

Preparation for Production

I Factory workshop preparation:

Reserve the main cable model: YJV3*50+2*25

Area: At least 25 meters long by 10 meters wide, totaling 250 square meters

Flow rate: 387 liters per minute.

Pressure requirement: 0.4-0.8 Mpa

Number of workers:9-10 people

II Preparation of production materials

1、Top lid, bottom lid, earpiece

① You can directly purchase top lids, bottom lids, and earpieces. In China, there are many specialized lid manufacturing factories that offer various specifications to choose from. If you have specific size requirements, you can request the lid factory to create custom molds for production. Once the production quantity reaches a certain threshold, the cost of mold fabrication is often waived or included for free.

② You can purchase equipment to produce top lids, bottom lids, and earpieces on your own. For more information about the relevant equipment, please click on the following link to learn more.

2、Can body material of printed tinplate

① You can directly purchase can body materials. In China, there are many professional printing tinplate factories that can customize can body materials according to your requirements.

② You can purchase tin printing equipment to conduct the printing on tinplate on your own. For more information about the relevant equipment, please click on the following link to learn more.

③ You can purchase the Double-side Glue Adhesive Film Laminating Line and process the tinplate yourself. If you would like to learn more about the relevant equipment, please click the link for more information.

3. Copper wire, adhesive, powder, iron wire, plastic glue plug.

These materials can be directly purchased worldwide.

Application industry

This production line is applicable to the production of metal round cans for food, medicine, chemical industry, paint, cooking oil and other industries. It can also be used in the production of food cans, paint cans, edible oil cans, paint cans, milk powder cans, aerosol cans, etc.

Applicable countries and regions

Applicable to countries or regions where labor is difficult, unstable, or highly paid. For example: malaysia, indonesia, philippines, vietnam, thailand, india, dubai and so on.

Applicable to countries or regions with high output and high product quality. For example: saudi arabia, dubai, russia, canada, south korea, turkey and so on.
