1-5L Rectangular Can Production Line

1-5L Rectangular Can Production Line

The production line is suitable for the semi-automatic production of 1 liter to 5 liters’ rectangular can. total power: approx.33KW,total floor space: 65㎡ .total length:approx.15 meters. total manpower: 8-9 people. Production capacity: 12-16cpm. Rectangular can’s height range: 80-350mm. Rectangular can’s diameter range:50-190mm

Working Process: Semi-automatic Slitting machine →Automatic Rounding machine→Semi-automatic Rear-feeding Welding machine→Semi-automatic expanding machine→Semi-automatic flanging machine→ Semi-automatic Bottom lid Seaming→Semi-automatic Top lid Seaming machine

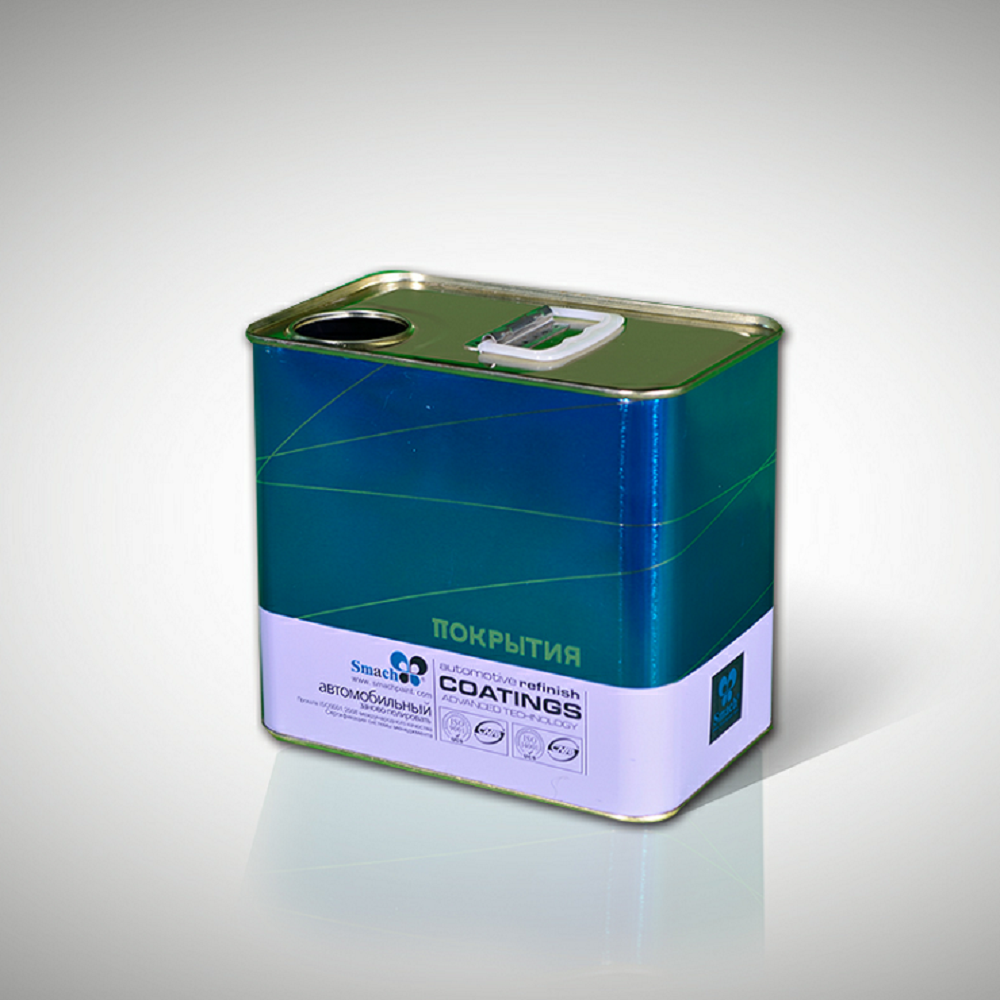

What’s the 1-5L rectangular can ?

It is made of three pieces of metal sheet (mostly tinplate), the can body, the bottom and the lid. The can is square shaped. The small square can range: capacity 1-5L, diagonal 50-190mm, height 80-350mm.

Equipment composition of semi-automatic 1-5Lrectangular can production line

GT1B5B Can Slitting Machine

Semi Auto 10-25L Conical Round Can production line-1
Maximum thickness of cutting iron sheet  0.18-0.5mm
Maximum width of cutting iron sheet 1000-1250mm
Minimum width of cutting sheet 40mm
Motor Power 1.65KW
Dimensions(L*W*H) (1470)1720×1000×1100mm
Device Weight 1200-1500KG

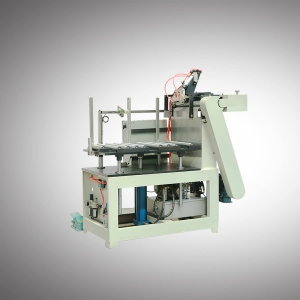

Automatic Rolling Machine

Semi Auto 10-25L Conical Round Can production line-2
Power supply AC380V/50HZ
total power 0.75KVA
thickness 0.2-0.4mm
pneumatic system pressure 40L/min Mpa
can height range 120-300mm/120-400mm
diameter range Φ52-105mm/Φ105-286mm
rounding speed 40m/min
Dimensions(L*W*H) 1500*700*1500mm

Rear-feeding seam welder machine

Semi Auto 10-25L Conical Round Can production line-3
WeldingSpeed: 6~12m/min(weldingpowerfrequency:50~240Hz)
Capacity: 10~50cans/min
Diameter: Φ52~180mm、Φ65~290mm
Height: 70~270mm、70~420mm
Material: 50#~100#Tinplateplate、steelbaseplate
Thickness: 0.18~0.38mm
Overlap:  0.4~1.2mm
Controlway: PLC
Coolingwater: ≤20℃
Waterflow: 20L/min
Waterpressure: 5kg/cm²
Installationcapacity: 16KVA
Dimensions(L*W*H) 1350×1450×1900mm
Device Weight 1200kg

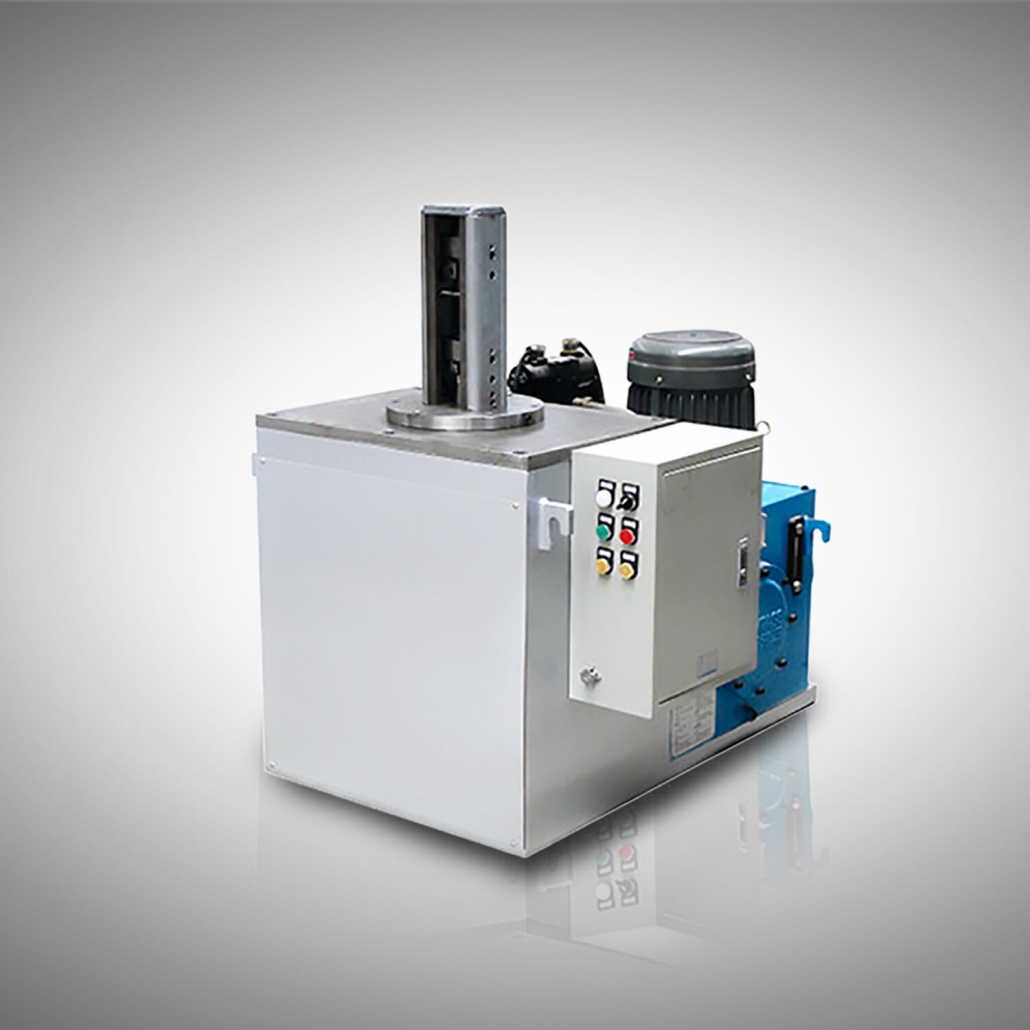

3F3Y Rectangle forming machine

Semi Auto 1-5L Rectangular Can Production Line-4
production capacity 20-30cmp
Scope 1-5L
Motor Power 5.5KW
hydraulic system working pressure 4-6mpa
Device Weight 600KG
Dimensions(L*W*H) 1300×700×1200mm

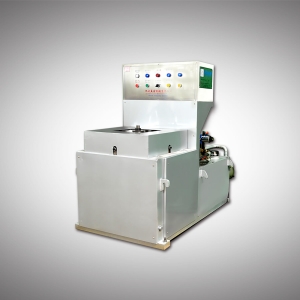

YX-18LF rectangle flanging machine

Semi Auto 1-5L Rectangular Can Production Line-5
Production range  1-18L
thickness 0.2-0.35mm
production capacity 20-30cmp
Dimensions(L*W*H)  1130×700×960mm
Motor Power 3.75KW
Device Weight 420KG

GT4A28Q Pneumatic tin can sealer

Semi Auto 10-25L Conical Round Can production line-6
production capacity 12-16cpm
diagonal range 50-300mm
can height range 50-400mm
thickness ≤0.4mm
pneumatic system pressure 0.4-0.8Mpa
Motor Power  2.2KW
Rotating speed 940rpm
Dimensions(L*W*H) 980×580×1900mm
Device Weight  800KG

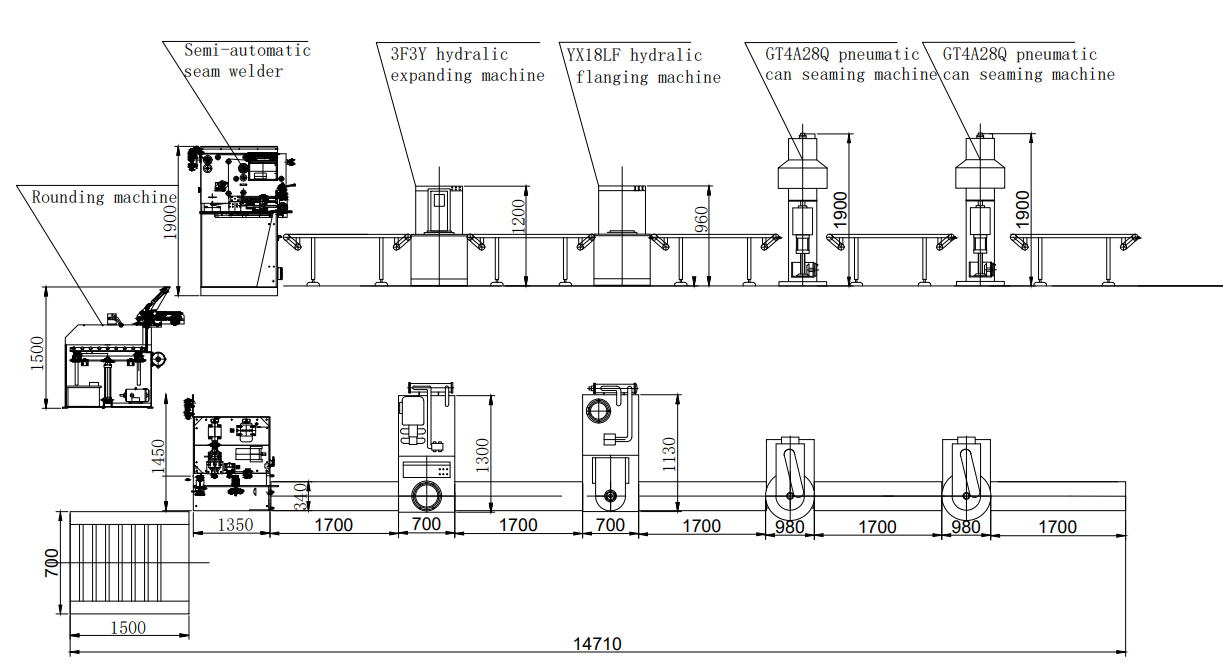

The layout of the production line

Tin can making artcraft

Tin can making artcraft

The following products are produced by this equipment

Semi Auto 1-5L Rectangular Can Production Line Application-1

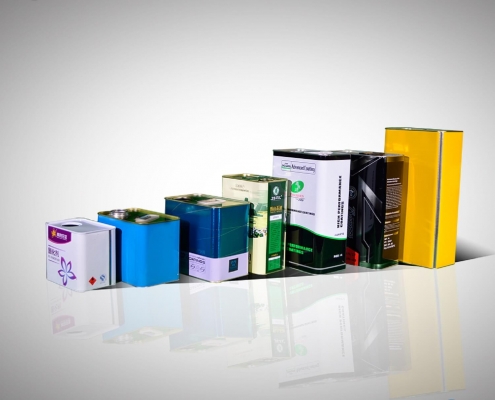

Semi Auto 1-5L Rectangular Can Production Line Application-2
Semi Auto 1-5L Rectangular Can Production Line Application-3

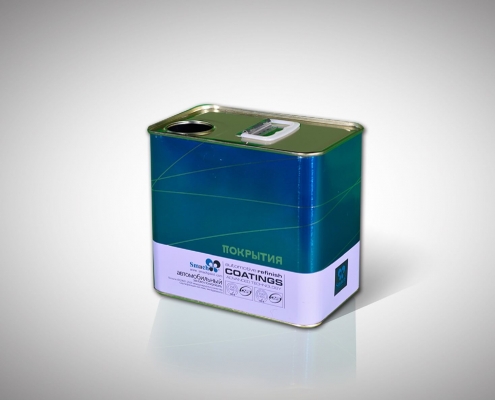

Semi Auto 1-5L Rectangular Can Production Line Application-4

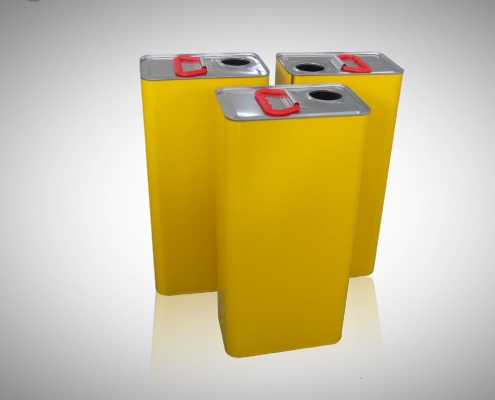

Semi Auto 1-5L Rectangular Can Production Line Application-5

Preparation for Production

I Factory workshop preparation:

Reserve the main cable model: YJV3*16+2*16

Area: At least 25 meters long by 10 meters wide, totaling 250 square meters

Flow rate: 160 liters per minute.

Pressure requirement: 0.4-0.8 Mpa

Number of workers:8-9people

II Preparation of production materials

1、Top lid, bottom lid, earpiece

① You can directly purchase top lids, bottom lids, and earpieces. In China, there are many specialized lid manufacturing factories that offer various specifications to choose from. If you have specific size requirements, you can request the lid factory to create custom molds for production. Once the production quantity reaches a certain threshold, the cost of mold fabrication is often waived or included for free.

② You can purchase equipment to produce top lids, bottom lids, and earpieces on your own. For more information about the relevant equipment, please click on the following link to learn more.

2、Can body material of printed tinplate

① You can directly purchase can body materials. In China, there are many professional printing tinplate factories that can customize can body materials according to your requirements.

② You can purchase tin printing equipment to conduct the printing on tinplate on your own. For more information about the relevant equipment, please click on the following link to learn more.

③ You can purchase the Double-side Glue Adhesive Film Laminating Line and process the tinplate yourself. If you would like to learn more about the relevant equipment, please click the link for more information.

3 Copper wire, adhesive, powder, plastic handles, plastic press-on caps, iron press-on caps.
These materials can be directly purchased worldwide.

Application industry

This production line is applicable to the production of metal round cans for food, medicine, chemical industry, paint, cooking oil and other industries. It can also be used in the production of food cans, paint cans, edible oil cans, paint cans, milk powder cans, aerosol cans, etc.

Applicable countries and regions

Applicable to countries or regions where labor is difficult, unstable, or highly paid. For example: malaysia, indonesia, philippines, vietnam, thailand, india, dubai and so on.

Applicable to countries or regions with high output and high product quality. For example: saudi arabia, dubai, russia, canada, south korea, turkey and so on.
