Automatic Conical Pail Production Line

Automatic Conical Pail Production Line

The production line is suitable for the automatic production of 10 liters to 25 liters’conical pail. total power: approx.130KW,total floor space: 250㎡ .total length:approx.36 meters. total manpower: 3-4 people. Production capacity: 28-30cpm. Pail height range: 170-460mm.Pail diameter range:200-300mm

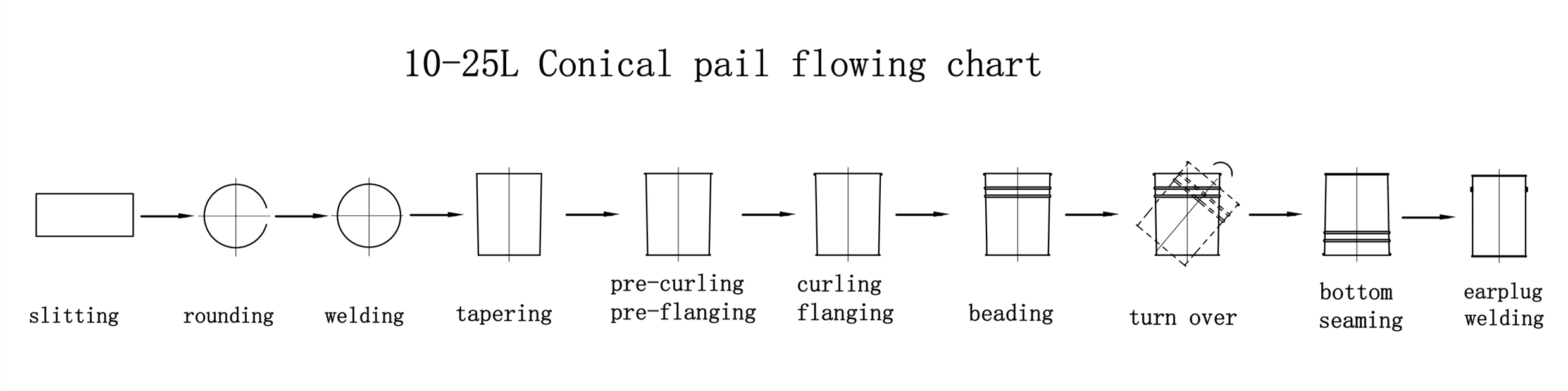

Technical flow: cutting the tin sheet to blank-rounding-welding-inner and outer coating (inner powder coating and outer coating)-drying-cooling conveying-conical expanding-flanging-curling-beading-bottom lid feeding-seaming-turning over-ear lug welding&coating&meal handle assembly-leak testing-packaging

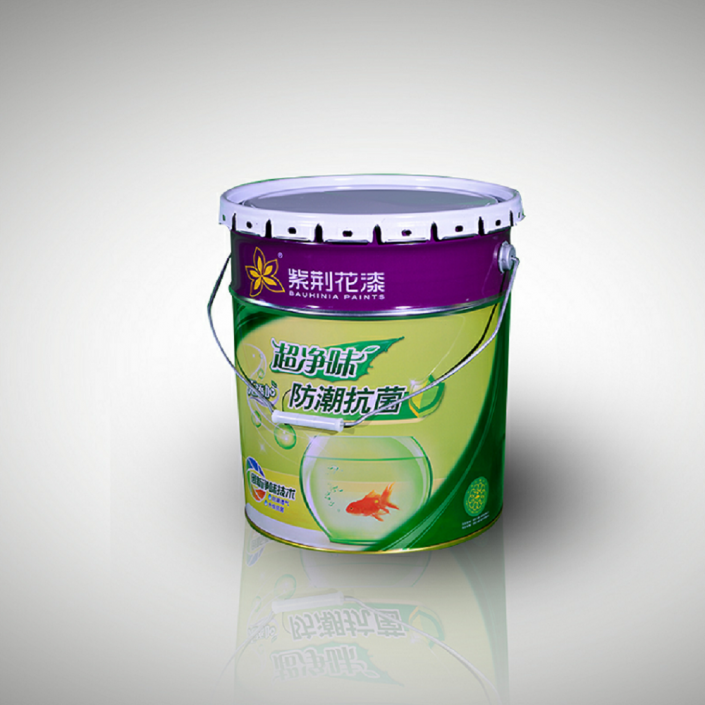

What is a conical pail?

It is made of three pieces of metal sheet (mostly tinplate), the body, the bottom and the lid of the Cans. The cans is conical. The tank body has two ribs, Range of drums: capacity 10-25l, diameter 200-300mm, height 170-460mm.

Working processof automatic conical pail production line

First place the cut can body materials into the automatic resistance welding machine’s feeding table, Suck by the vacuum suckers,send the tin blanks to the feeding roller one by one.through the feeding roller, the single tin blank is fed to the rounding roller to conduct rounding process, then it will be fed to the rounding forming mechanism to make rounding.The body is fed into the resistance welding machine and make welding after the accurate positioning. After welding, the can body is automatically fed into the rotary magnetic conveyor of the coating machine for outer coating, inner coating or inner powder coating, Which depends on customer’s various need.It is mainly used to prevent the side welding seam line from being exposed in air and rusting.The can body should be placed in induction drying oven to dry if it’s inner coating or inner powder coating.Afer drying, It will be fed to cooling device to make natural cooling.The cooled can body is then fed to the conical pail combination machine, and the can body is in an upright state going through the uprighting conveyor.The first operation is the can body conical expansion. When the can body is in position, on the can body lifting tray which is controlled by a servo motor, and the can body is sent by this lifting tray to the conical expanding mold to make conical expanding.The step 2 is pre-flanging The step 3 is curling.The upper mold is fixed on the machine body, and the lower mold, which is mounted on the CAM, completes the flanging and curling when the CAM is jacked up.The step 4 is beading. After completing the above four steps,When the bottom lid auto feeder detects the can body coming, It will automatically feed one bottom lid to the top of the can body,and then both the can body and the bottom lid will be clamped to seaming machine head to make auto seaming.After bottom seaming, it is fed to automatic double spots ear lug welding machine,through automatic side welding seam indexing, Cam conveyor conveying, mechanic paint breaking, also equipped with automatic ear lugs vibrating discs,finish accurate welding task on conical pail.Then,The pail is fed to handle making and assembly station to finish automatic handle assembly.Lastly, The finished can is conveyed to the automatic leak testing station by conveyor.Through the accurate air source detecting step, The unqualified products will be tested and fed to the fix area.The qualified pails will come to the packing table for the final packaging.

Equipment composition of full-automatic production line of conical pail

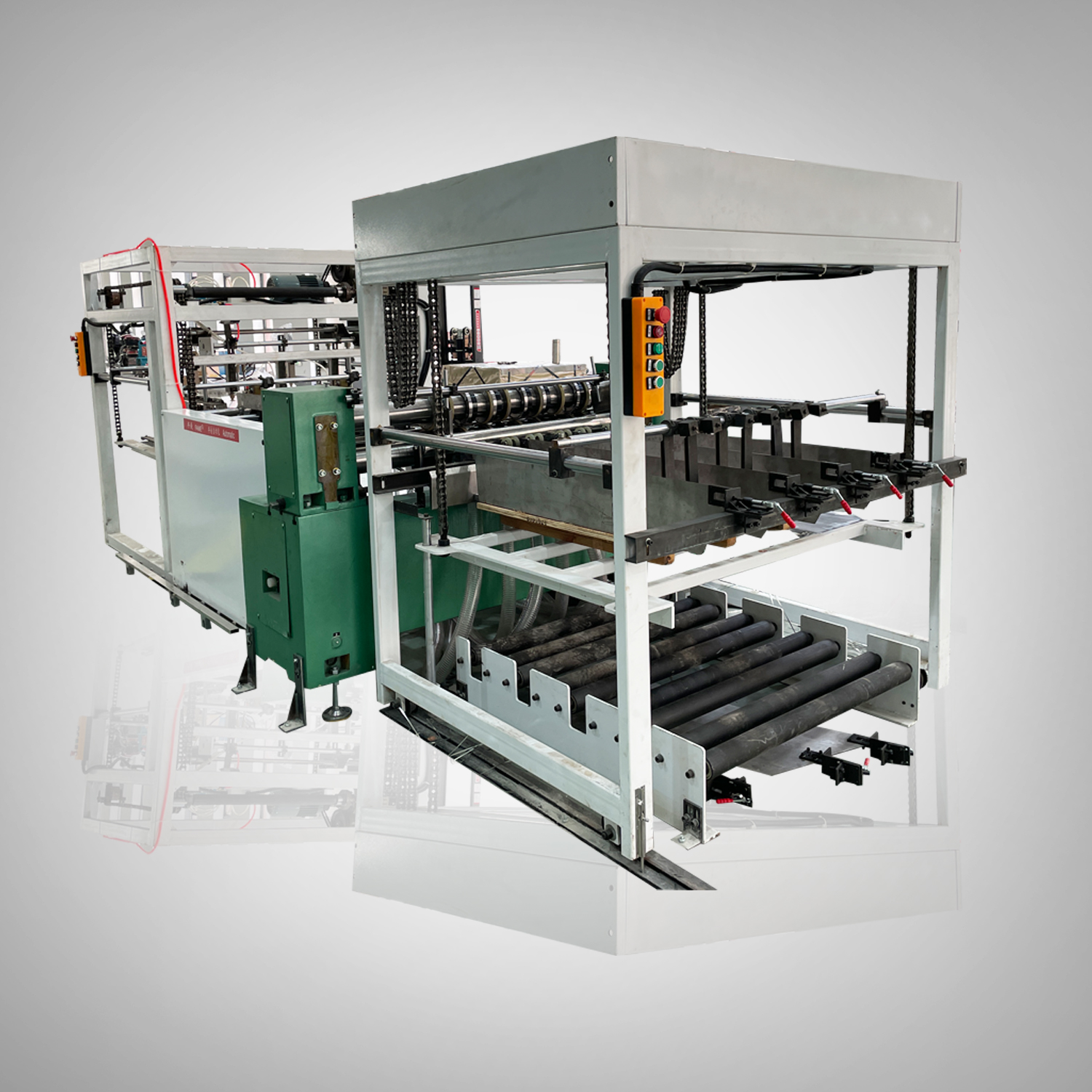

Single gang slitter

Single gang slitter
Maximum size of cutting material (L*W) 1100*1100mm
Minimum size of cutting material (L*W) 200*400mm
The fastest speed 50 sheets/min
Power supply 380v/50HZ
Total power 3.5kw
Device Weight 1800kg
Feed rack load capacity 3T

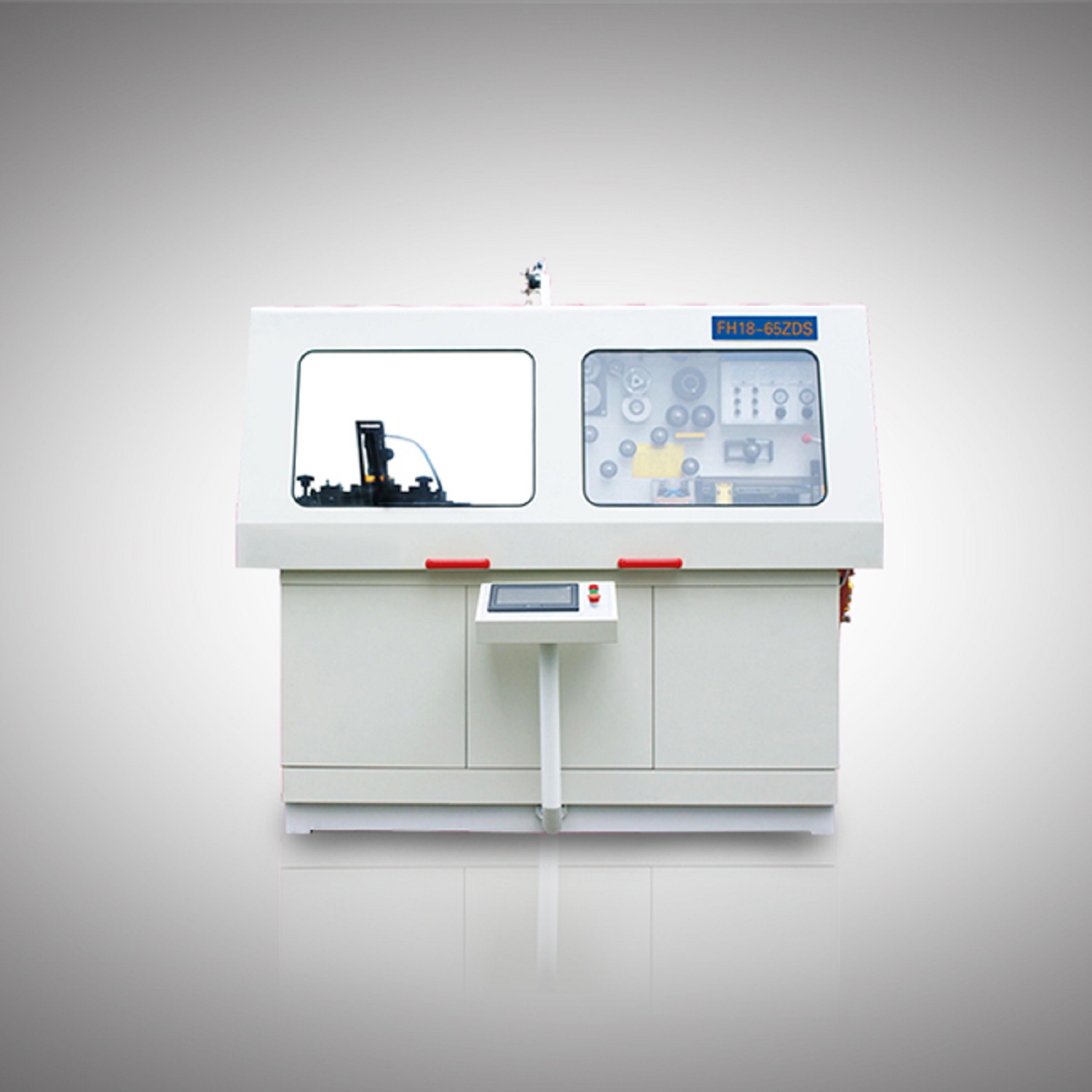

Full automatic welding machine

Full automatic welding machine
Full automatic welding machine
Welding frequency 100-280Hz
Welding speed 8m-15m/min
Production capacity 25-35cans/min
Can body diameter Φ220mm-Φ300mm
Can height 220mm-500mm
Adapt to tinplate thickness 0.2mm-0.4mm
Copper wire diameter Φ1.5mm-Φ1.8mm
Weld seam amount 0.6mm-1.0mm
Power supply 380v 50Hz Three-phase power
Installed power 20KW
Cooling water >0.4MPa,12-20℃,40L/min
Air consumption ≥200L/min>0.5Mpa
Device Weight About 3000KG
Dimensions(L*W*H) 2200mm*1520mm*1980mm

Powder spraying machine

Powder spraying machine
Powder spraying machine
Applicable can diameter Φ52mm-Φ350mm
Transfer speed 10-20m/min/20-60/min
Coating width 6-14mm
Powder material Polyester Epoxies
Installed power 2.5KW
Air consumption ≥300L/min>0.5Mpa
Input power AC 220v,50HZ
Device Weight 500KG
Dimensions(L*W*H) 900*900*2200mm

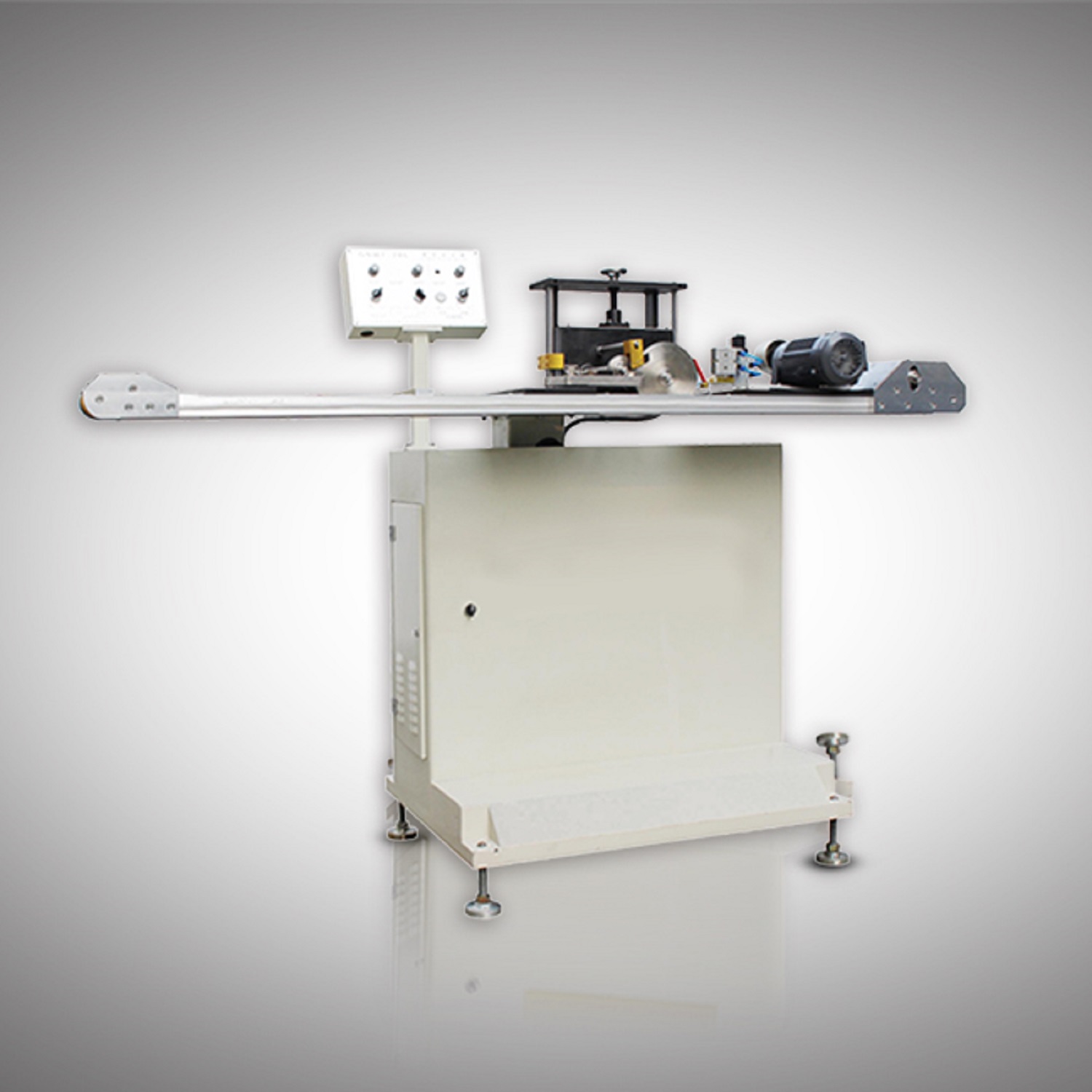

Full automatic coating machine

Full Auto 10-25L Conical Round Can Production Line-2
Full automatic coating machine
Applicable can diameter Φ52Mmm-Φ350mm
Applicable can height 50mm-600mm
Coating speed 8-16m/min/25-50m/min
outside Coating width 8-18mm
Compressed airm 0.4MPA/cm²
Input power ≥380v/50HZ
Dimensions(L*W*H) 1800*600*1300mm
Device Weight 500KG

Electromagnetic drying machine

Full Auto 10-25L Conical Round Can Production Line-3
Electromagnetic drying machine
Burner power 1-2KW
Burner heating speed 4m-7m/min
Suitable small can diameter Φ45mm-Φ176mm
Suitable big can diameter Φ176mm-Φ350mm
Can height 45mm-600mm
Cooling water >0.4MPa,12-20℃,40L/min
Air consumption ≥50L/min>0.5Mpa

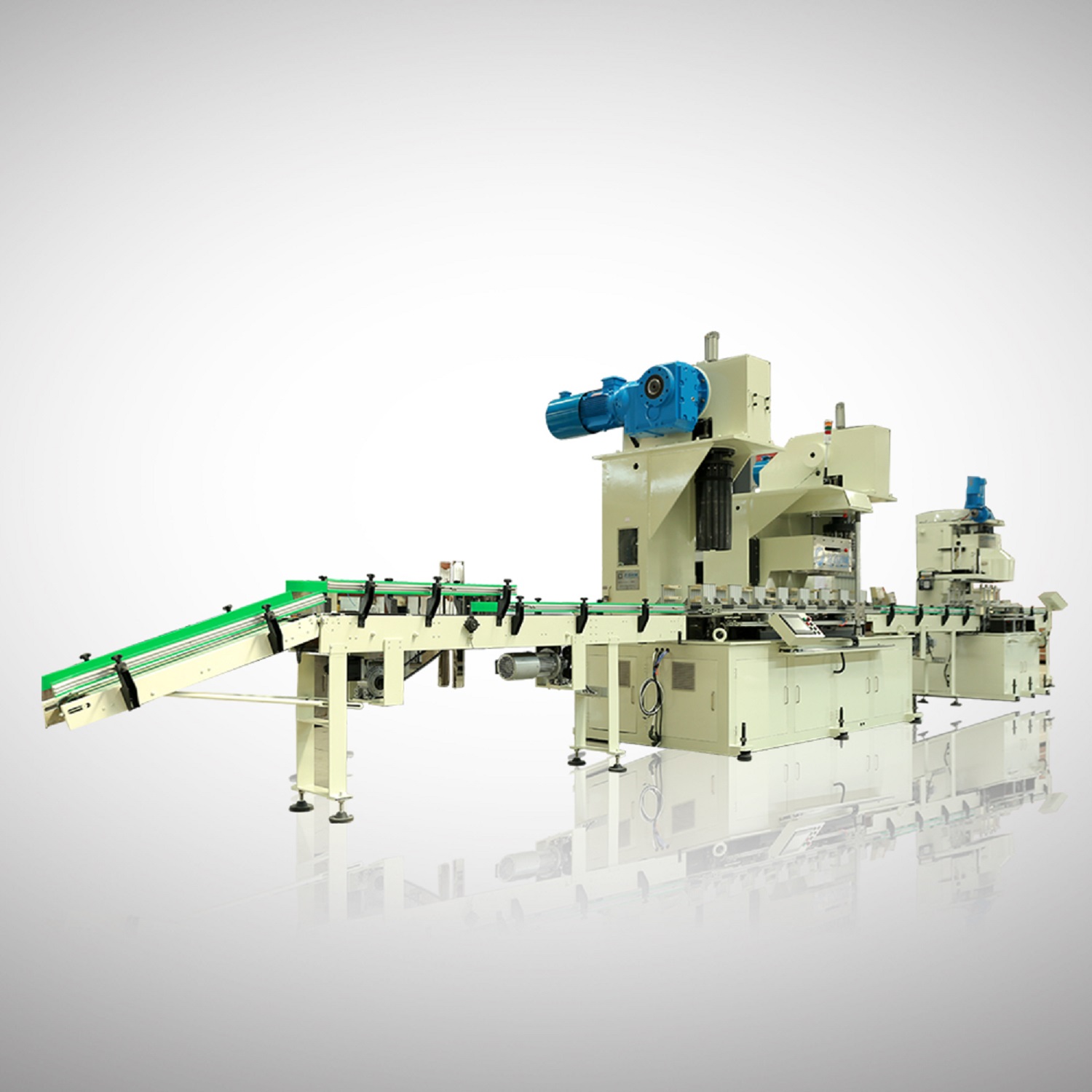

Full automatic can body combination machine

Full Auto 10-25L Conical Round Can Production Line-4
Full automatic can body combination machine
production capacity 25-30cpm
drum body diameter range Φ200-300mm
drum body height range 170-460mm
thickness ≤0.4mm
total power 44.41KW
pneumatic system pressure: 0.3-0.5Mpa
body uprighting conveyor size 4260*340*1000mm
combination machine size 3800*1770*3200mm
electric carbinet size 700*450*1700mm
combination machine weight 9T

GT4B30 Automatic can sealing machine

Full Auto 10-25L Conical Round Can Production Line-5
GT4B30 Automatic can sealing machine
production capacity 25-30cpm
diameter range Φ200-300mm
height range 170-460mm
thickness ≤0.4mm
total power 4.55KW
pneumatic system pressure: >0.3-0.5Mpa
the front section conveyor’s size 2780*310*750mm
seaming machine size 1350*1290*1980mm
electric carbinet size 600*350*1400mm
outfeed conveyor size 2000*340*760mm
seaming machine weight 3T

Blue Bucket Medium Frequency Welding Spray Handle Equipment

Full Auto 10-25L Conical Round Can Production Line-6
Blue Bucket Medium Frequency Welding Spray Handle Equipment
Range of can bodies Blue bucket
Range of can height 220-480mm
Capacity per minute Up to 30pcs/min
Power required 30KW
Dimensions of Principle Machine(L*W*H) 3900*2800*2360mm
Dimensions of Unreeling Machine(L*W*H) 1030*1030*1530mm
Principle Machine Weight 5000KG
Unreeling Machine Weight 500KG
Lubrication system Manual lubrication
Height of input station 840-1000mm
Compressed air required 0.4Mpa*10L/min

Leak tester

Leak tester
Detected product volume range 18-20L
Equipment air pressure 4-6Bar
Check pressure 10-15Kpa
Detection accuracy 0.17mm
Detection speed 35PCS/mins
Device Weight 3800KG
Dimensions(L*W*H) 3400mm*2200mm*2300mm
Input power 380v/50HZ

The layout of the production line

Tin can making artcraft

Tin can making artcraft

The following products are produced by this equipment


Preparation for Production

I Factory workshop preparation:

Reserve the main cable model: YJV3*70+2*35

Area: At least 45 meters long by 10 meters wide, totaling 450 square meters

Flow rate: 2050 liters per minute.

Pressure requirement: 0.4-0.8 Mpa

Number of workers:3-4people

II Preparation of production materials

1、 Top lid, bottom lid, earpiece

① You can directly purchase top lids, bottom lids, and earpieces. In China, there are many specialized lid manufacturing factories that offer various specifications to choose from. If you have specific size requirements, you can request the lid factory to create custom molds for production. Once the production quantity reaches a certain threshold, the cost of mold fabrication is often waived or included for free.

② You can purchase equipment to produce top lids, bottom lids, and earpieces on your own. For more information about the relevant equipment, please click on the following link to learn more.

2、 Can body material of printed tinplate

① You can directly purchase can body materials. In China, there are many professional printing tinplate factories that can customize can body materials according to your requirements.

② You can purchase tin printing equipment to conduct the printing on tinplate on your own. For more information about the relevant equipment, please click on the following link to learn more.

③ You can purchase the Double-side Glue Adhesive Film Laminating Line and process the tinplate yourself. If you would like to learn more about the relevant equipment, please click the link for more information.

3. Copper wire, adhesive, powder, iron wire, plastic glue plug.
These materials can be directly purchased worldwide.

Advantages and disadvantages of the full-automatic production line of conical pail

Advantages: the whole production line adopts automatic computer programming control system, fully realizing the full automatic assembly line work.Only 1-2 workers are needed to complete the operation of the entire production line.The whole production line has fast production speed, high production efficiency, automatic fault detection system and low rejection rate.

Disadvantages: compared to semi-automatic production line, the initial investment capital is larger. For the start-up enterprises,It is recommended to use semi-automatic production line with less capital in.

ISHIN products and peer products comparison

ISHIN products: through professional design, the whole production line can achieve quick replacement of double seaming and triple seaming requirements, adjustable expanding rib mold, precise cooperation of imported guide rail and profile combined with servo motor, to ensure fast flow conveying system. Eight roller can sealing head and can sealing quality are stable and fast. At the same time, the sealing head is specially designed, which has the characteristics of low noise and high efficiency.

Products of the same industry: the whole production line can only achieve the production of double seaming or triple seaming. The expanding mould is fixed and can not be adjusted at will. Common profile and domestic track, combined with stepping motor coordination, lack of stability and accuracy. There are only four rollers in the head of the can sealer, so the quality and speed will have a certain impact. At the same time, the machine head adopts old-fashioned design, and the production noise is large.

Application industry

This production line is applicable to the production of metal round cans for food, medicine, chemical industry, paint, cooking oil and other industries. It can also be used in the production of food cans, paint cans, edible oil cans, paint cans, milk powder cans, aerosol cans, etc.

Applicable countries and regions

Applicable to countries or regions where labor is difficult, unstable, or highly paid. For example: malaysia, indonesia, philippines, vietnam, thailand, india, dubai and so on.

Applicable to countries or regions with high output and high product quality. For example: saudi arabia, dubai, russia, canada, south korea, turkey and so on.

Why to chooes ISHIN products?

  • Established 20 years ago, ISHIN technology is a well-known brand in the Chinese industry.
  • More than 80% of customers in China have used ISHIN products.
  • ISHIN technology has a strong technical team and professional after-sales service to provide customers with turnkey project and one-stop service.
  • Once choosing ISHIN technology products, ISHIN technology will provide you with the most professional technical advice and guidance from material selection, printing and typesetting, installation, commissioning to smooth production
