0.1L-5L Round Can Production Line
The production line is suitable for the semi-automatic production of 0.1 liter to 5 liters’ round can. total power: approx.71KW,total floor space: 65㎡ .total length:approx.15 meters. total manpower: 8-9 people. Production capacity: 25-30cpm.Small round can’s height range: 50-300mm. Small round can’s diameter range：50-180mm
Working Process:Semi-automatic Slitting machine →Automatic Rounding machine→Semi-automatic rear-feeding Welding machine→Semi-automatic Flanging machine→Semi-automatic Bottom lid Seaming→Semi-automatic Top lid Seaming machine→Automatic fedding double ear welder.
What is a small round can?
It is made of three pieces of metal sheets (mostly tinplate) of cans body, cans bottom and cans cover, and the cans body is round. Range of round cans: capacity 0.1-5l, diameter 50-180mm, height 50-300mm.
Equipment composition of semi-automatic 0.1-5L round can production line
GT1B5B Can Slitting Machine
| Maximum thickness of cutting iron sheet | 0.18-0.5mm |
| Maximum width of cutting iron sheet | 1000-1250mm |
| Minimum width of cutting sheet | 40mm |
| Motor Power | 1.65KW |
| Dimensions(L*W*H) | （1470）1720×1000×1100mm |
| Device Weight | 1200-1500KG |
Automatic Rolling Machine
| Power supply | AC380V/50HZ |
| total power | 0.75KVA |
| thickness | 0.2-0.4mm |
| pneumatic system pressure | 40L/min Mpa |
| can height range | 120-300mm/120-400mm |
| diameter range | Φ52-105mm/Φ105-286mm |
| rounding speed | 40m/min |
| Dimensions(L*W*H) | 1500*700*1500mm |

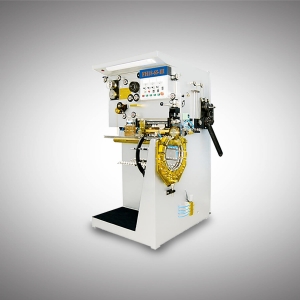

Rear-feeding seam welder machine
| WeldingSpeed： | 6~12m/min（weldingpowerfrequency：50~240Hz） |
| Capacity： | 10~50cans/min |
| Diameter： | Φ52~180mm、Φ65~290mm |
| Height： | 70~270mm、70~420mm |
| Material： | 50#~100#Tinplateplate、steelbaseplate |
| Thickness： | 0.18~0.38mm |
| Overlap： | 0.4~1.2mm |
| Controlway： | PLC |
| Coolingwater： | ≤20℃ |
| Waterflow： | 20L/min |
| Waterpressure： | 5kg/cm² |
| Installationcapacity： | 16KVA |
| Dimensions(L*W*H) | 1350×1450×1900mm |
| Device Weight | 1200kg |
QD Pneumatic flanging Machine
| production capacity | 20-30cpm |
| diagonal range | 40-180mm |
| can height range | 50-300mm |
| thickness | ≤0.3mm |
| air cylinder | 100×70mm |
| pneumatic system pressure | 4-6kg f/cm2 |
| Dimensions(L*W*H) | 500×500×1700mm |
| Device Weight | 280kg |

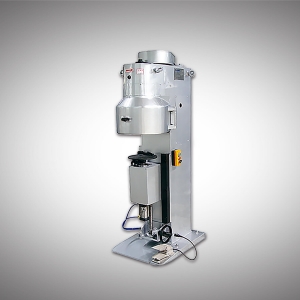

GT4A68Q Pneumatic round can seamer
| production capacity | 20-30cpm |
| diagonal range | 50-180mm |
| can height range | 50-300mm |
| thickness | ≤0.4mm |
| pneumatic system pressure | 0.4-0.8Mpa |
| Motor Power | 1.5KW |
| Rotating speed | 1400rpm |
| Dimensions(L*W*H) | 720×520×1760mm |
| Device Weight | 450KG |
Auto feeding Double spot welder
| production capacity | 20-25cpm |
| electrode pressure | 1250N |
| diameter range | Φ126-176mmn |
| load rate | 20% |
| primary current | 100A(Instantaneous） |
| air pressure | 0.5Mpa |
| air consumption | 200L/min |
| Device Weight | 380KG |
| Dimensions(L*W*H) | 1300*1000*1050mm |
| total power | 50KVA |
| Power supply | 380-440V |

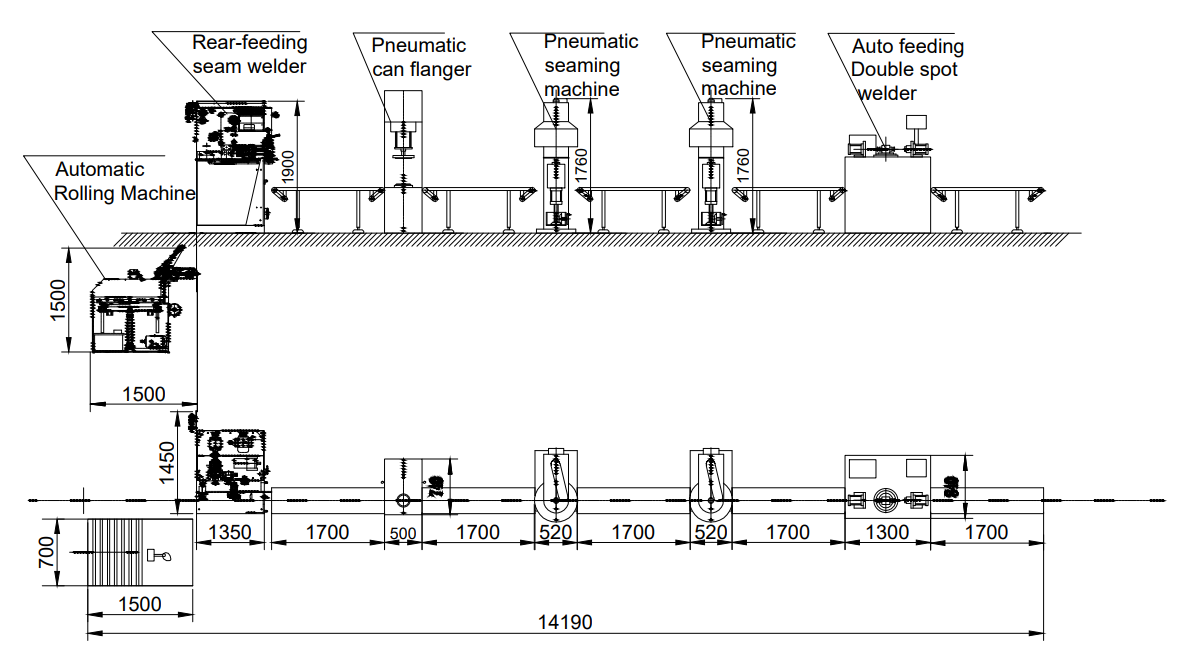

The layout of the production line
Tin can making artcraft
The following products are produced by this equipment
Application industry
This production line is applicable to the production of metal round cans for food, medicine, chemical industry, paint, cooking oil and other industries. It can also be used in the production of food cans, paint cans, edible oil cans, paint cans, milk powder cans, aerosol cans, etc.
Applicable countries and regions
Applicable to countries or regions where labor is difficult, unstable, or highly paid. For example: malaysia, indonesia, philippines, vietnam, thailand, india, dubai and so on.
Applicable to countries or regions with high output and high product quality. For example: saudi arabia, dubai, russia, canada, south korea, turkey and so on.
Why to chooes ISHIN products?
- Established 20 years ago, ISHIN technology is a well-known brand in the Chinese industry.
- More than 80% of customers in China have used ISHIN products.
- ISHIN technology has a strong technical team and professional after-sales service to provide customers with turnkey project and one-stop service.
- Once choosing ISHIN technology products, ISHIN technology will provide you with the most professional technical advice and guidance from material selection, printing and typesetting, installation, commissioning to smooth production
