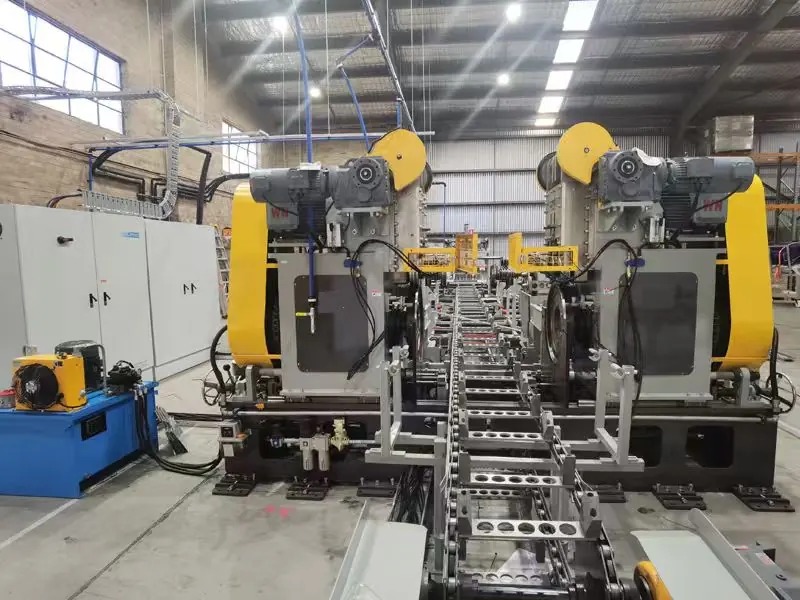

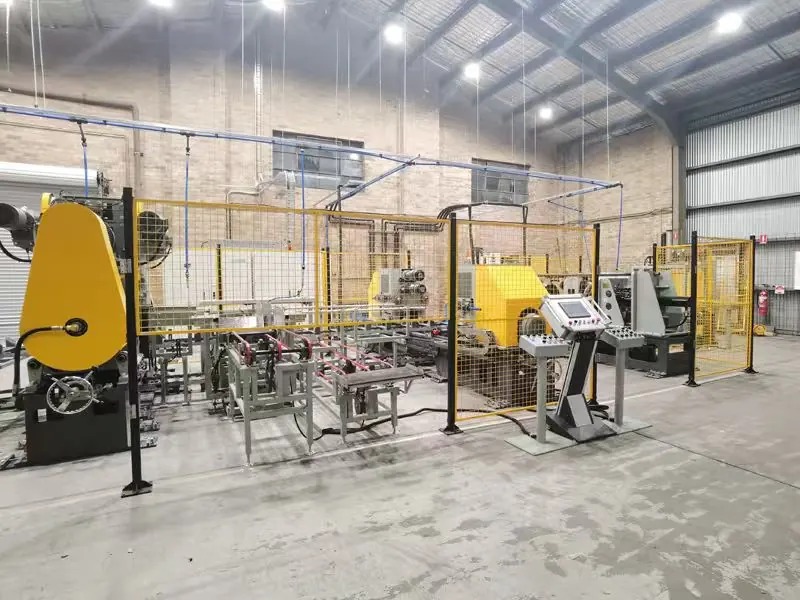

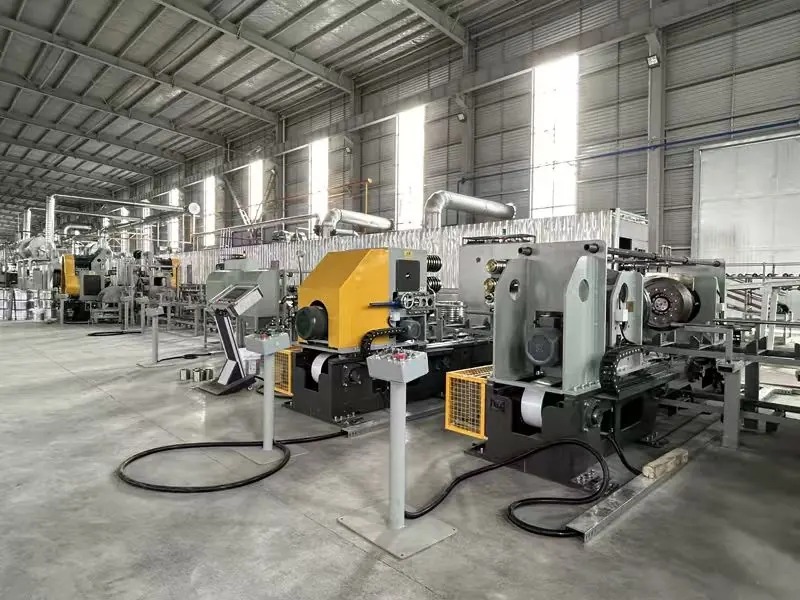

200L Horizontal forming line
200L Horizontal forming line
The mid and rear section equipment of the steel drum production line mainly consists of welding machine, flanging machine, beading machine, corrugation machine, internal wiping machine, internal blowing machine, automatic lid feeding machine, lid wiping machine, sealing machines, leak testing machines, conveyers, external paint chamber, pre-drying distribution systems, drying oven, and control systems etc. It is suitable for making steel drums with a diameter of 571 mm.
With latest servo motion control, it is fast and accurate, and can effectively reduce hydraulic failure points.
Strong flexibility, can meet the rapid adjustment of different length barrel production.
The main components are selected from imported or domestic high-quality brands.
Optional equipment such as automatic ends feeder, Wiping devices, etc.
200L Horizontal forming line

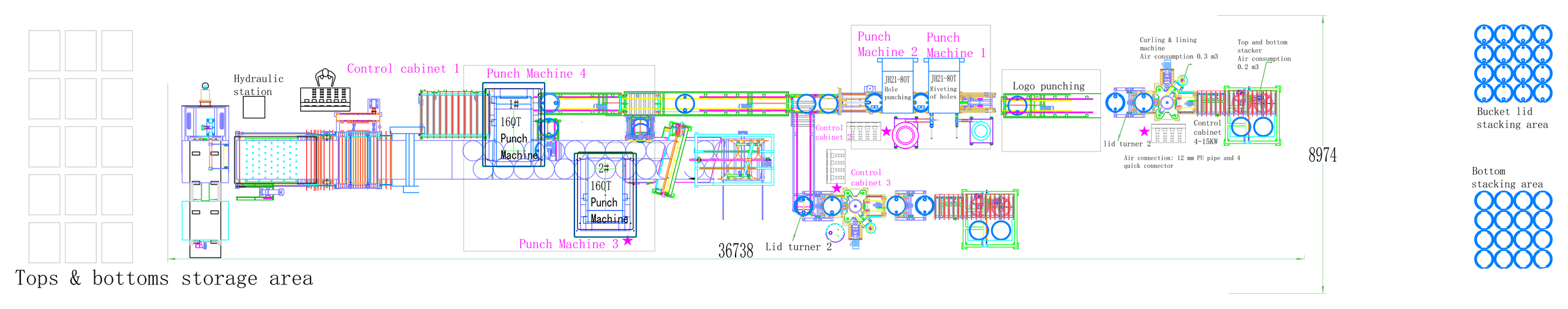

200L Horizontal Forming Line – Floor Plan

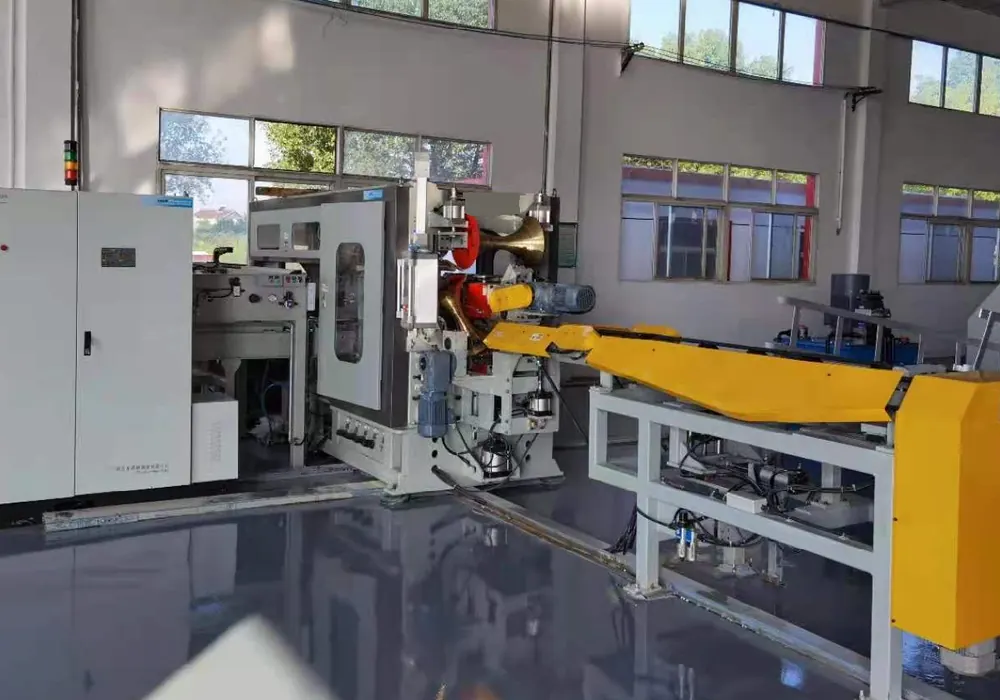

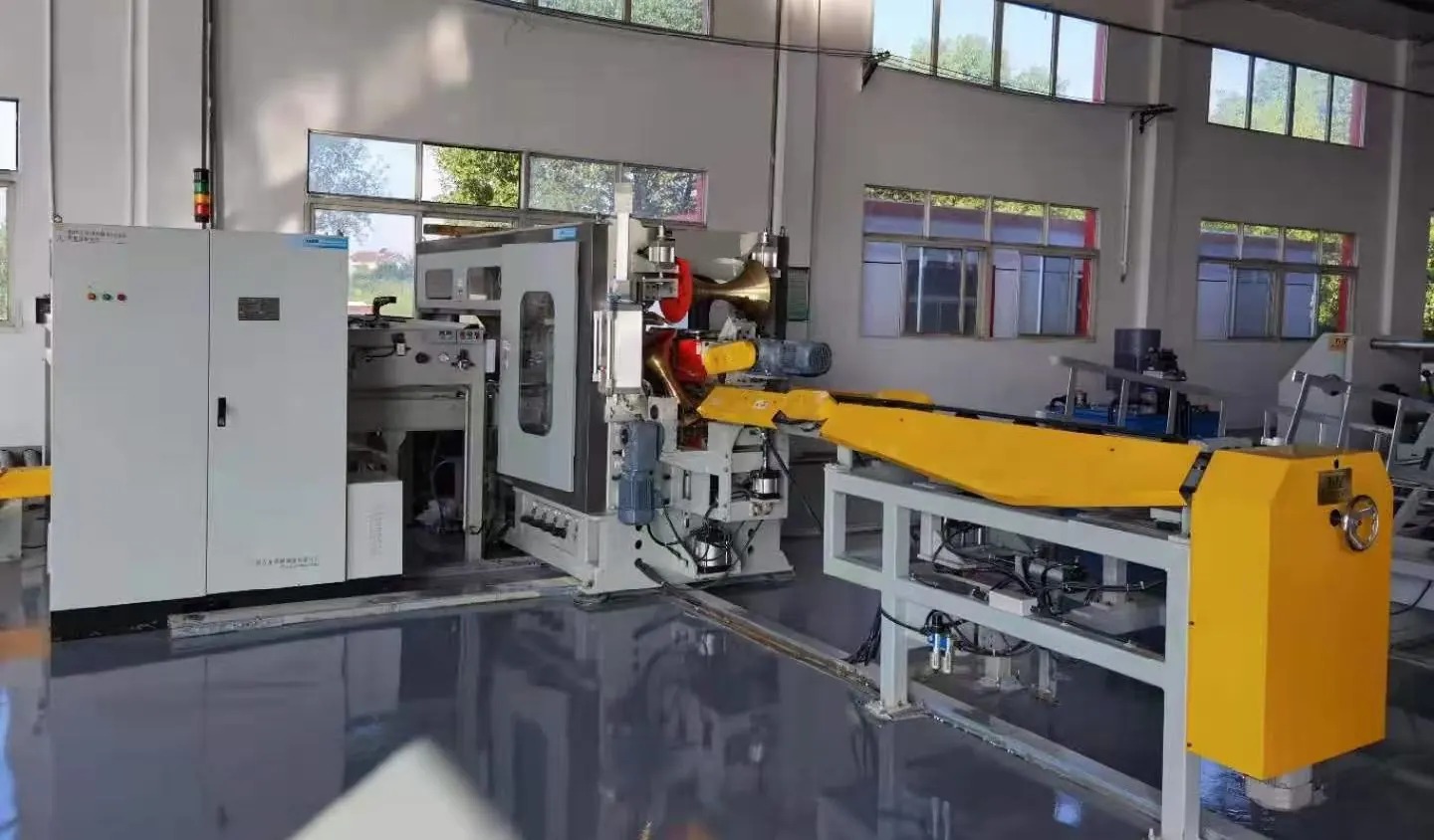

55G/210L Drum Automatic Welder
100+ sets of our fully automatic welders being used in China and overseas
Up to 50% cost saving for spare parts by patented design
Automatic lubrication and cooling system provides more stable weld performance
Up to 50% energy saving by tri-phase welding control
Multi Servo drives application
Fast spare parts replacement: 15 to 30 minutes
| Specifications | |
| Item | Specification |
| Speed | 720/600/480/360 DPH |
| Thickness | 0.6–1.5 mm |
| Diameter | 520–571 mm |
| Length | 700–1050 mm |

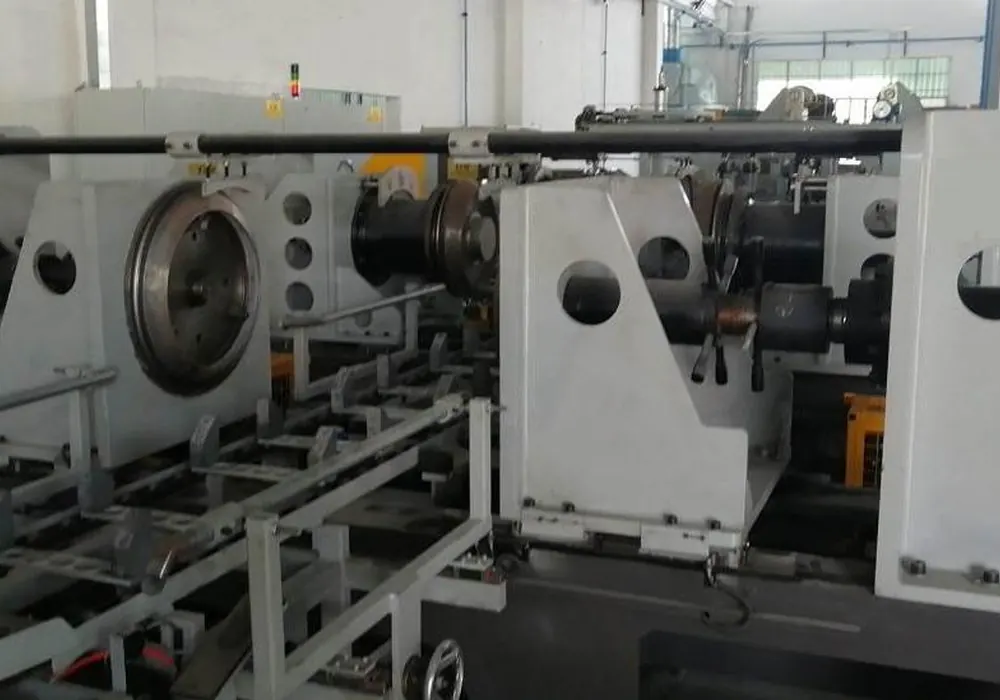

Electric High-Speed Flanging Machine
After welding, the conveying mechanism automatically feeds the drum body into the machine. Once detected, the equipment lifts the drum body, and one side of the flanging disc moves forward to perform flanging at both ends of the drum. After completion, it automatically retracts, and once in position, the lifting mechanism lowers the drum body. The conveying system simultaneously removes the finished drum and feeds the next one into the process.
Powered by electric motors, the flanging machine requires no hydraulics, resulting in fewer malfunctions and faster, more stable operation.

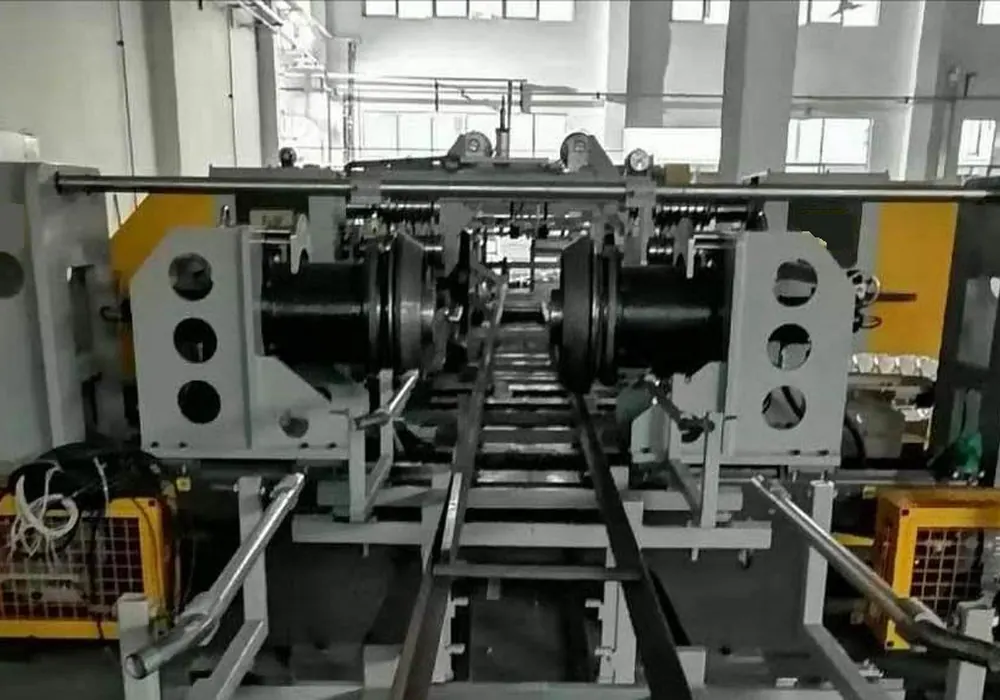

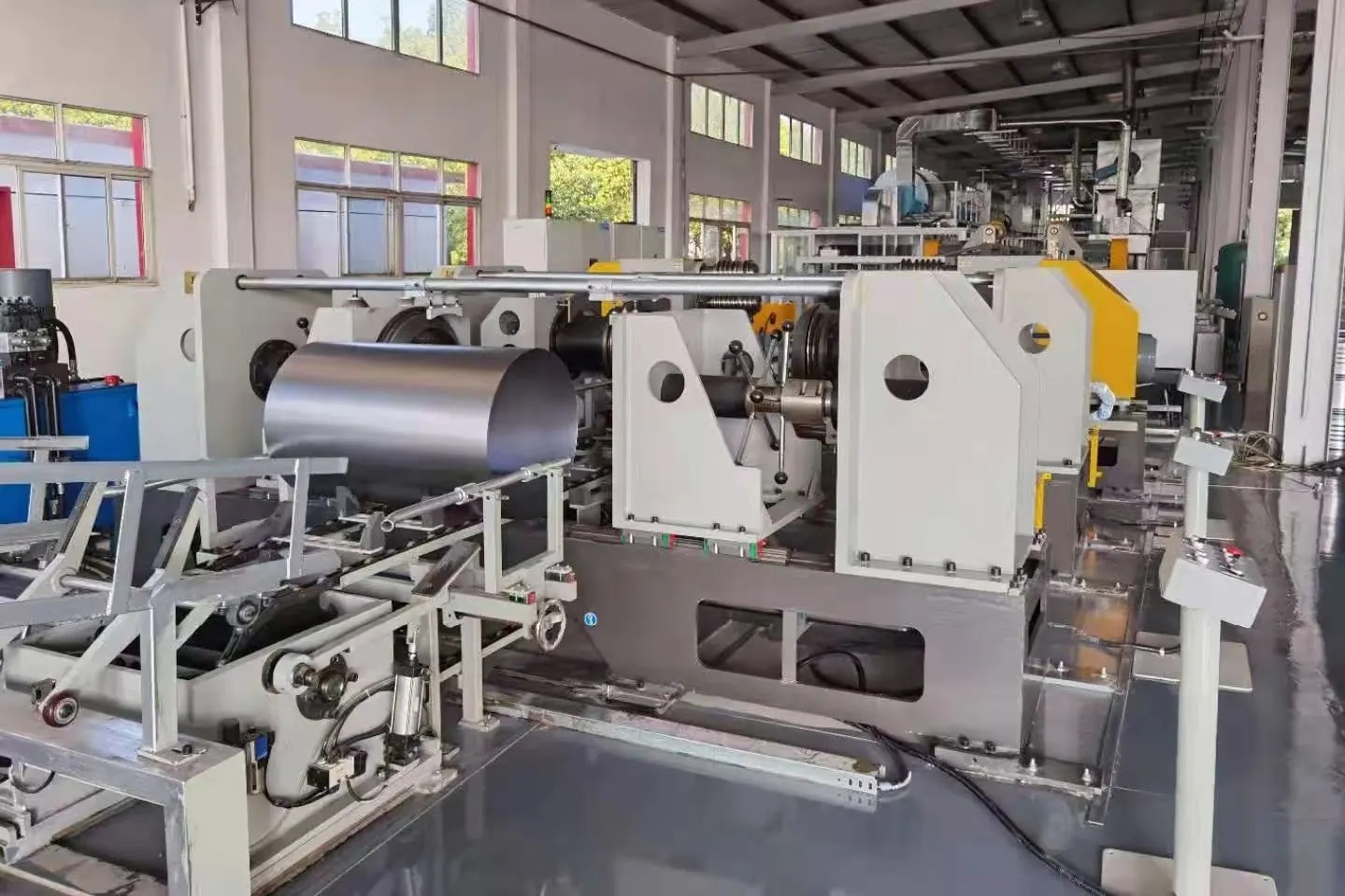

Servo-Driven High-Speed Beading Machine
The movement of the beading head is controlled by servo motors, eliminating hydraulic systems for fast, precise, and flexible operation with fewer failure points and enhanced stability. The beading force is driven entirely by electric motors, completely removing hydraulic components.
The drum body is conveyed via a chain to the beading station. Upon detection, the equipment lifts the drum body, and the beading head advances under servo drive to perform stiffening. After forming, the working head automatically retracts, and the lifting mechanism lowers the drum body. The conveyor simultaneously removes the completed drum and feeds the next one into the process.

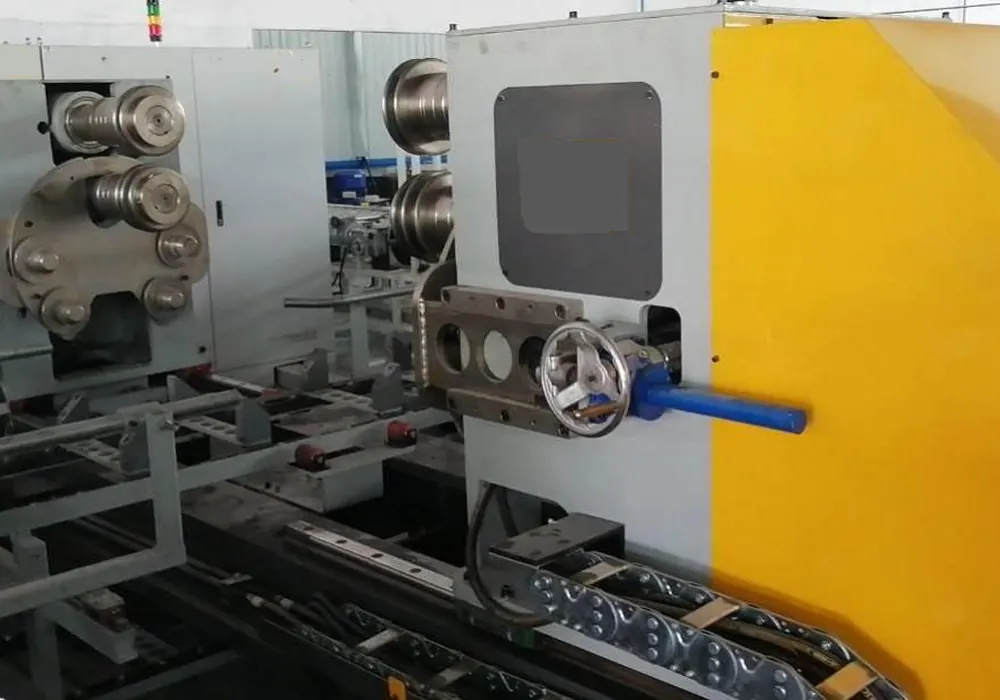

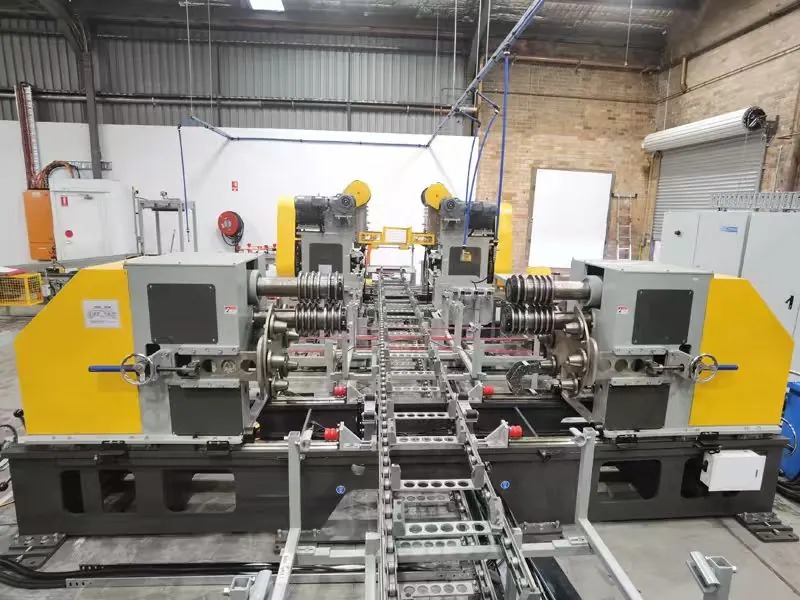

Servo-Driven High-Speed Corrugation Machine
The corrugation machine uses servo-controlled motion for the working head’s in-and-out movement, eliminating hydraulics for rapid, accurate, and smooth operation with improved reliability and stability. Vertical motion for corrugation is powered by electric motors, fully replacing hydraulic systems.
The conveying system automatically feeds the drum body into the machine. Upon detection, the equipment lifts the drum body to the correct height. The corrugating head then advances under servo control to the preset position, automatically completing the corrugation or W-bead rolling. Afterward, the head retracts automatically, the lifting mechanism descends, and the conveyor simultaneously removes the finished drum while feeding the next one into the process.

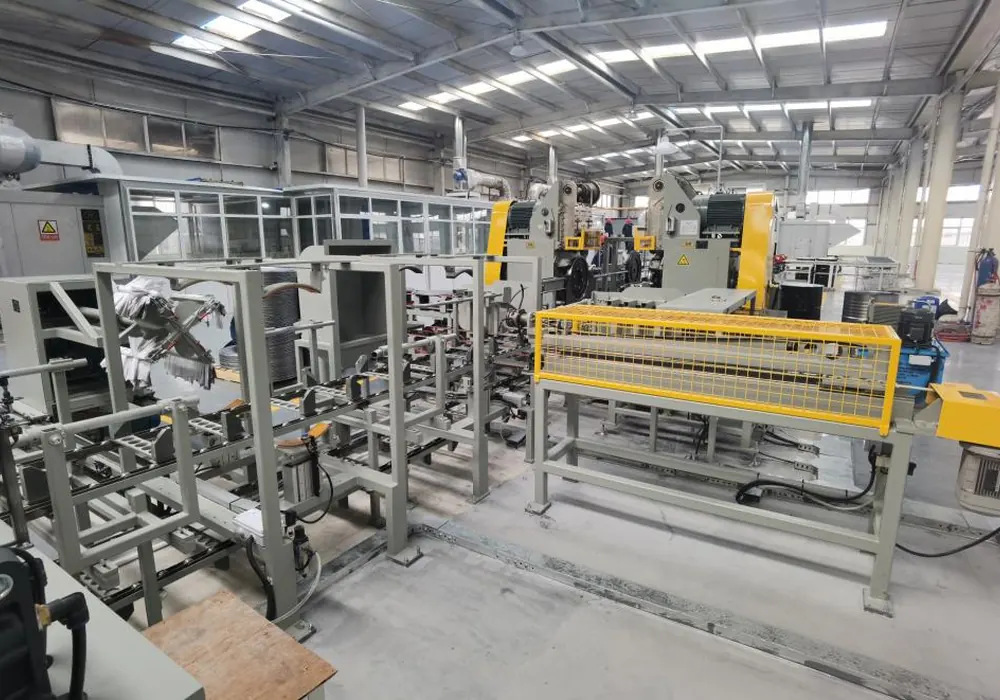

Internal Wiping and Internal Blowing Machine
The production line includes internal wiping and internal dust-blowing machine, which effectively clean the interior of the drum body.

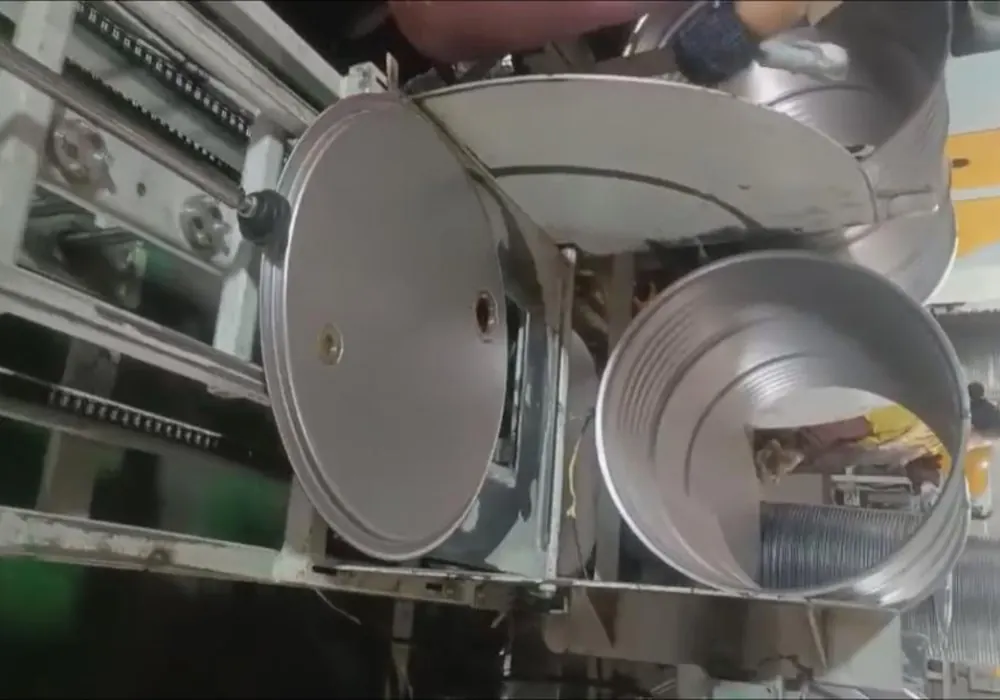

Automatic Lid Feeding Machine
The automatic lid feeder comprises a conveying rack, lifting device, and transfer mechanism. Operators place lids and bottoms onto the conveying rack, which are then lifted and transferred to both sides of the drum body. A lid assembly unit lifts the lid and completes the installation onto the drum body before moving it to the sealing machine.
An optional automatic lid and bottom wiping device can be added to reduce labor intensity and improve lid cleanliness.

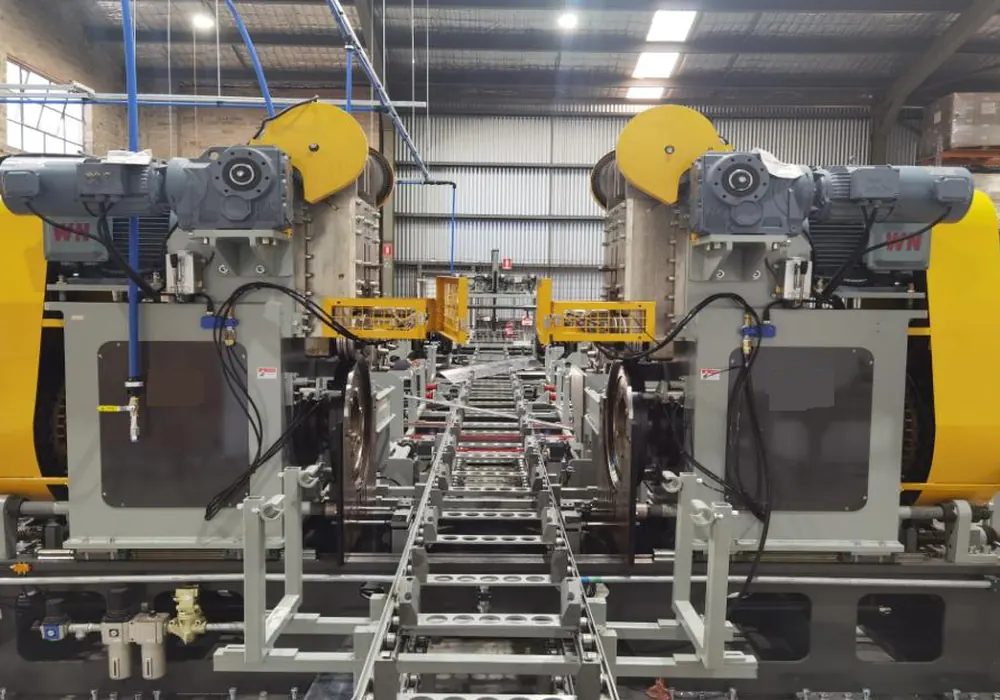

Mechanical Sealing Machine
The conveying system delivers the drum body and lid together into the sealing machine, where they are pressed and sealed. The sealing machine features a latest-generation cam-based structure, ensuring high stability and efficiency. Two units are installed: one for sealing standard and high-definition closed-end drums, and another for sealing drums after internal coating.

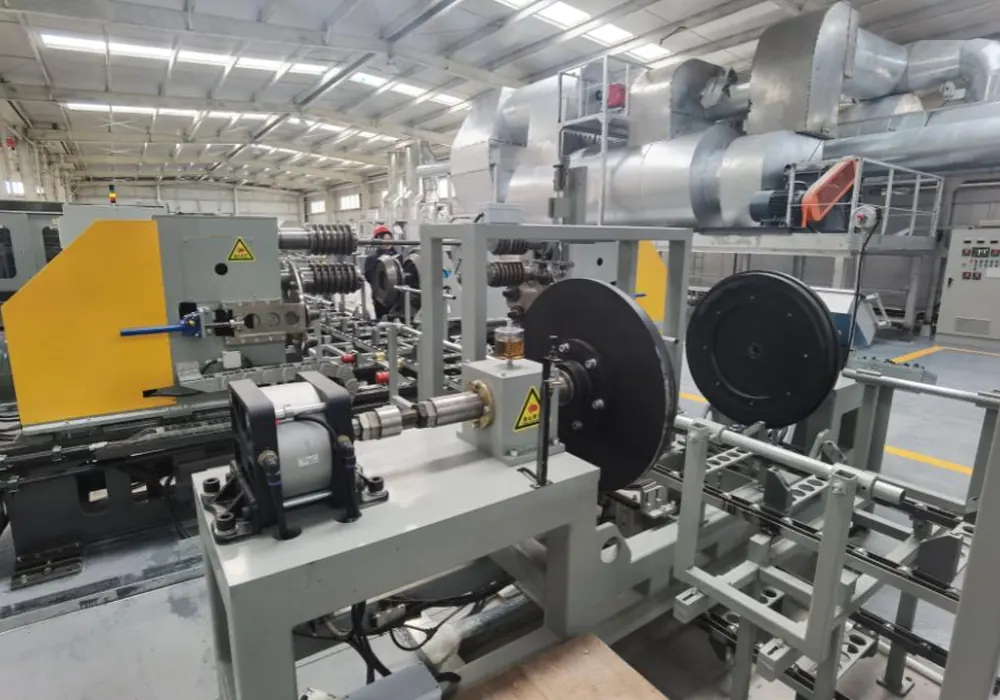

Leak Testing Machine
Two leak testers are integrated along the main production line, used respectively for testing weld seams of drum sleeves and final leakage checks after sealing.

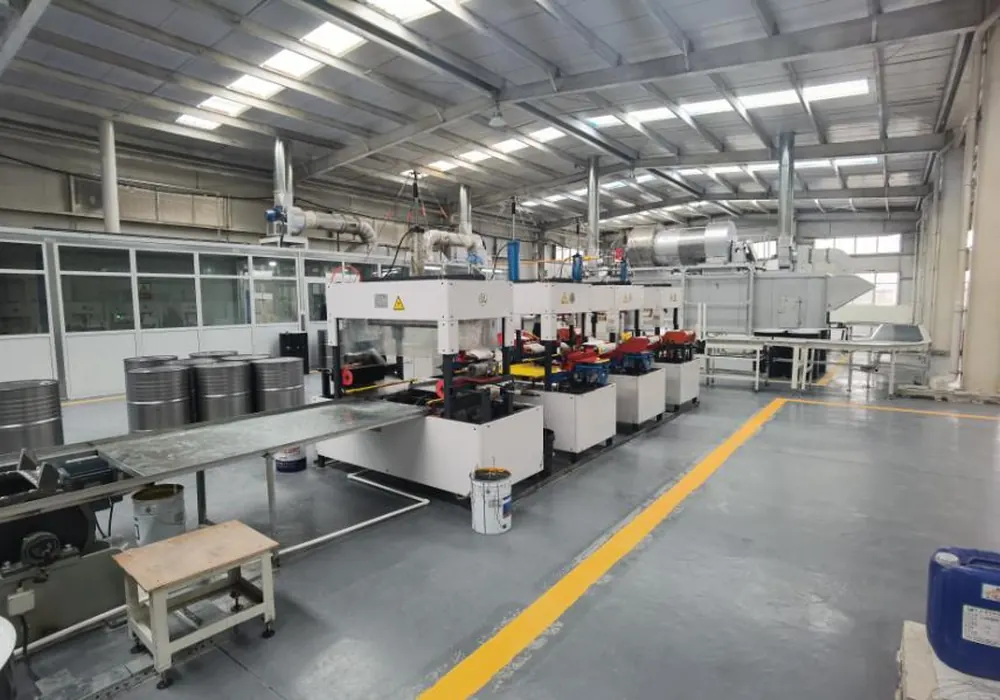

External Wiping Machine
Used to wipe the assembled and formed drums. Two to three units may be configured. After wiping, conventional externally painted drums proceed to the painting stage.

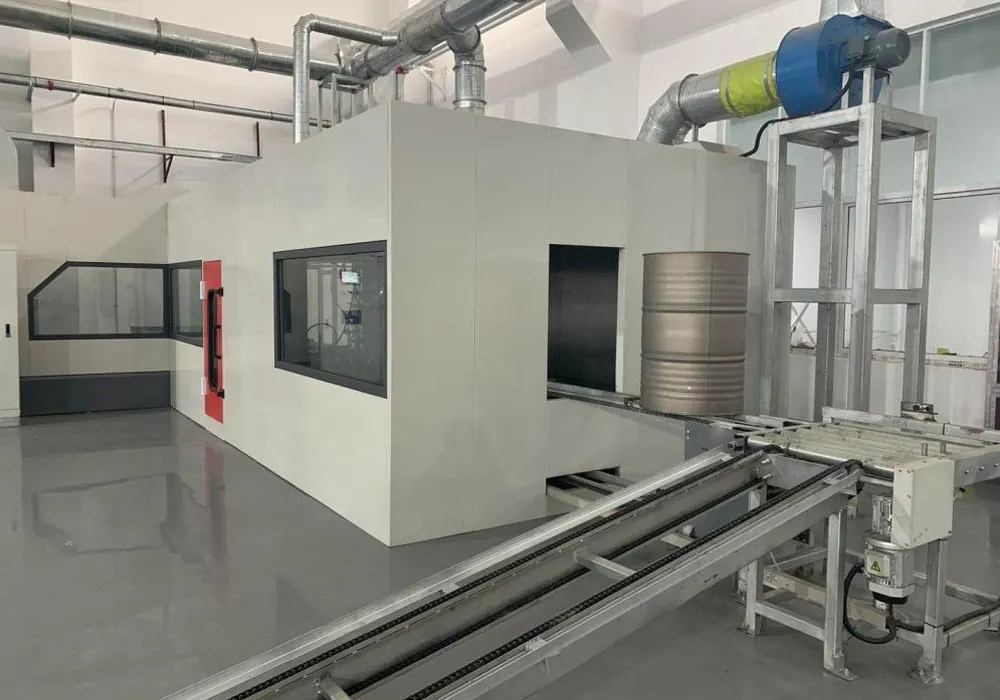

Rear Section Equipment
This equipment is designed for painting and drying 208L steel drums with thicknesses ranging from 0.8 to 1.2 mm.
