The production line is suitable for the semi-automatic production of 10-20 liters’square can. total power: approx.35KW,total floor space: 65㎡ .total length:approx.15 meters. total manpower: 8-9 people. Production capacity: 15-20cpm. Square can’s height range: 170-450mm. Square can’s diameter range:300-320mm

Working Process:Semi-automatic Slitting→Semi-automatic Rounding→Semi-automatic Seam welding→Semi-automatic Expanding and Embossing→Semi-automatic Flanging→Semi-automatic Seaming→Semi-automatic Seaming

What’s the square can?

It is made of three pieces of metal sheet (mostly tinplate), the can body, the bottom and the lid. The can is square shaped. The square can range: capacity 10-20L, diagonal 300-320mm, height 170-450mm.

Equipment composition of semi-automatic 10-25l conical pail can production line

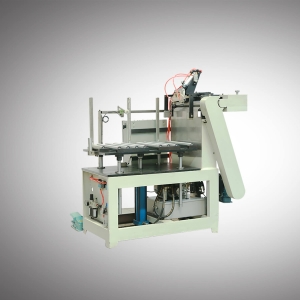

Gt1b5b can slitting machine

Semi Auto 10L-20L Square Can Production Line-1
Maximum thickness of cutting iron sheet  0.18-0.5mm
Maximum width of cutting iron sheet 1000-1250mm
Minimum width of cutting sheet 40mm
Motor Power 1.65KW
Dimensions(L*W*H) (1470)1720×1000×1100mm
Device Weight 1200-1500KG

Automatic Rolling Machine

Semi Auto 10-25L Conical Round Can production line-2
Power supply AC380V/50HZ
total power 0.75KVA
thickness 0.2-0.4mm
pneumatic system pressure 40L/min Mpa
can height range 120-400mm
diameter range Φ105-286mm
rounding speed 40m/min
Dimensions(L*W*H) 1500*700*1500mm

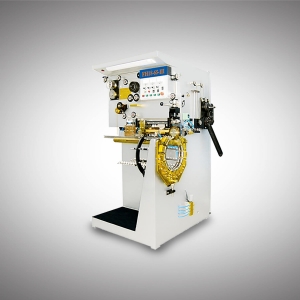

Rear-feeding seam welder machine

Semi Auto 10-25L Conical Round Can production line-3
WeldingSpeed: 6~12m/min(weldingpowerfrequency:50~240Hz)
Capacity: 10~50cans/min
Diameter: Φ52~180mm、Φ65~290mm
Height: 70~270mm、70~420mm
Material: 50#~100#Tinplateplate、steelbaseplate
Thickness: 0.18~0.38mm
Overlap:  0.4~1.2mm
Controlway: PLC
Coolingwater: ≤20℃
Waterflow: 20L/min
Waterpressure: 5kg/cm²
Installationcapacity: 16KVA
Dimensions(L*W*H) 1350×1450×1900mm
Device Weight 1200kg

YX-18LC square can body flanging machine

Semi Auto 10L-20L Square Can Production Line-4
Production range  9-20L
maximum oil pressure 13Mpa
thickness 0.23-0.30mm
pneumatic system pressure 0.4-0.8Mpa
production capacity 15-20cpm
Fuel tank capacity 125L
Motor Power 7.5KW
Dimensions(L*W*H) 1400×730×1200mm
Power supply 380V-415V 50HZ
Device Weight 1280KG

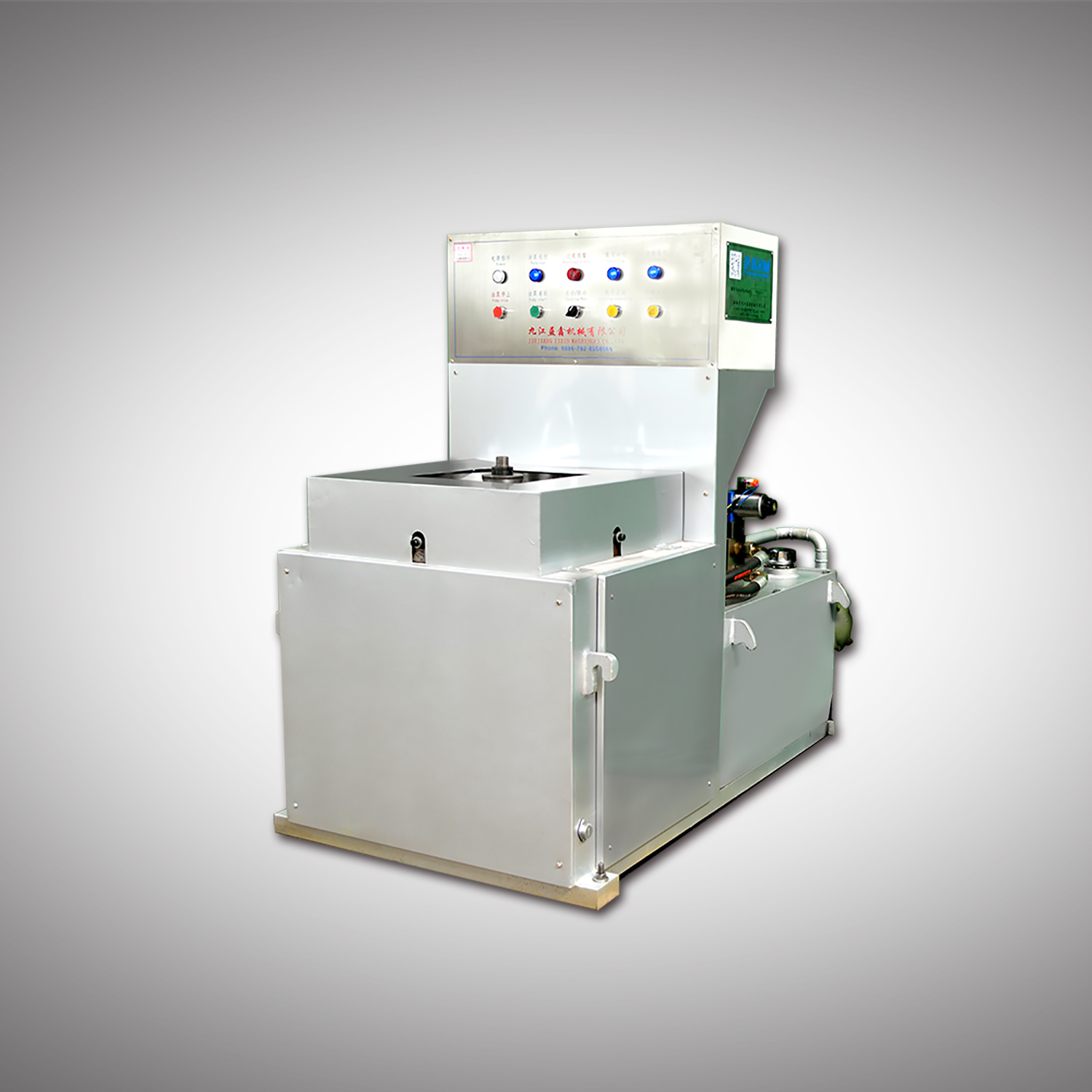

YX-18LF square can flanging machine

Semi Auto 10L-20L Square Can Production Line-5
Production range  1-18L
thickness 0.2-0.35mm
production capacity 20-30cmp
Dimensions(L*W*H)  1130×700×960mm
Motor Power 3.75KW
Device Weight 420KG

GT4A28Q Pneumatic tin can sealer

Semi Auto 10-25L Conical Round Can production line-6
Production capacity (cpm) 12-16cpm
diagonal range 50-300mm
can height range 50-400mm
thickness ≤0.4mm
pneumatic system pressure 0.4-0.8Mpa
Motor Power 2.2KW
Rotating speed 940rpm
Dimensions(L*W*H) 980×580×1900mm
Device Weight 800KG

The layout of the production line

Semi-Auto-10L-20L-Square-Can-Production-Line-9

Tin can making artcraft

Tin-can-making-artcraft-9-2048x371-1

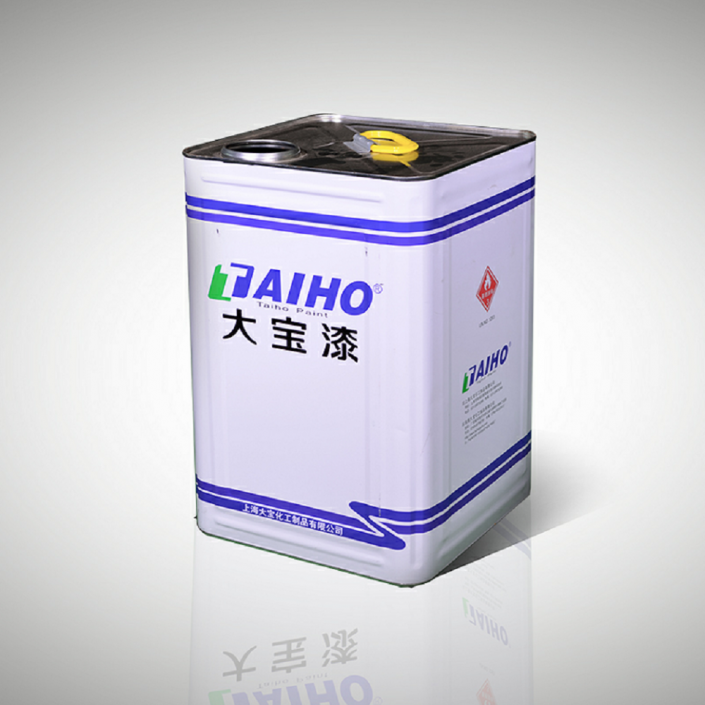

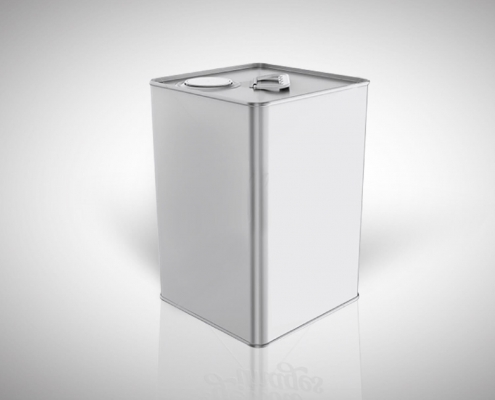

The following products are produced by this equipment

Semi-Auto-10L-20L-Square-Can-Production-Line-Application-1-1030x861-1
Semi-Auto-10L-20L-Square-Can-Production-Line-Application-2-1030x851-1
Semi-Auto-10L-20L-Square-Can-Production-Line-Application-3-1030x860-1
Semi-Auto-10L-20L-Square-Can-Production-Line-Application-4-1030x864-1

Preparation for Production

I Factory workshop preparation:

Reserve the main cable model: YJV3*25+2*16

Area: At least 25 meters long by 10 meters wide, totaling 250 square meters

Flow rate: 184 liters per minute.

Pressure requirement: 0.4-0.8 Mpa

Number of workers:8-9people

II Preparation of production materials

1、 Top lid, bottom lid, earpiece

① You can directly purchase top lids, bottom lids, and earpieces. In China, there are many specialized lid manufacturing factories that offer various specifications to choose from. If you have specific size requirements, you can request the lid factory to create custom molds for production. Once the production quantity reaches a certain threshold, the cost of mold fabrication is often waived or included for free.

② You can purchase equipment to produce top lids, bottom lids, and earpieces on your own. For more information about the relevant equipment, please click on the following link to learn mor.

2、 Can body material of printed tinplate

① You can directly purchase can body materials. In China, there are many professional printing tinplate factories that can customize can body materials according to your requirements.

② You can purchase tin printing equipment to conduct the printing on tinplate on your own. For more information about the relevant equipment, please click on the following link to learn more.

③ You can purchase the Double-side Glue Adhesive Film Laminating Line and process the tinplate yourself. If you would like to learn more about the relevant equipment, please click the link for more information.

3 Copper wire, adhesive, powder, plastic handles, plastic press-on caps, iron press-on caps.

These materials can be directly purchased worldwide.

Application industry

This production line is applicable to the production of metal round cans for food, medicine, chemical industry, paint, cooking oil and other industries. It can also be applied to the production of food cans, paint cans, edible oil cans, paint cans, lubricating oil cans, etc.

Applicable countries and regions

Applicable to countries or regions where labor is difficult, unstable, or highly paid. For example: Malaysia, Indonesia, Philippines, Vietnam, Thailand, India, dubai and so on.

Applicable to countries or regions with high output and high product quality. For example: Saudi Arabia, dubai, Russia, Canada, South Korea, Turkey and so on.
