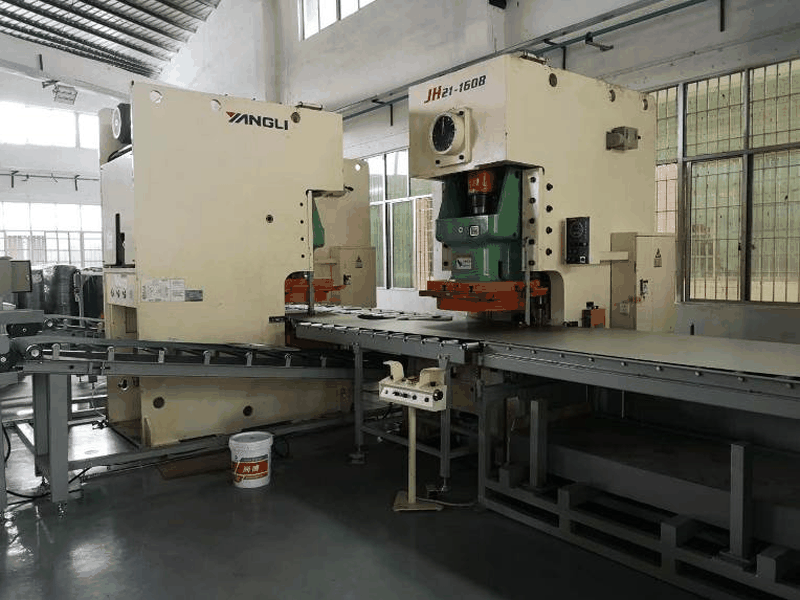

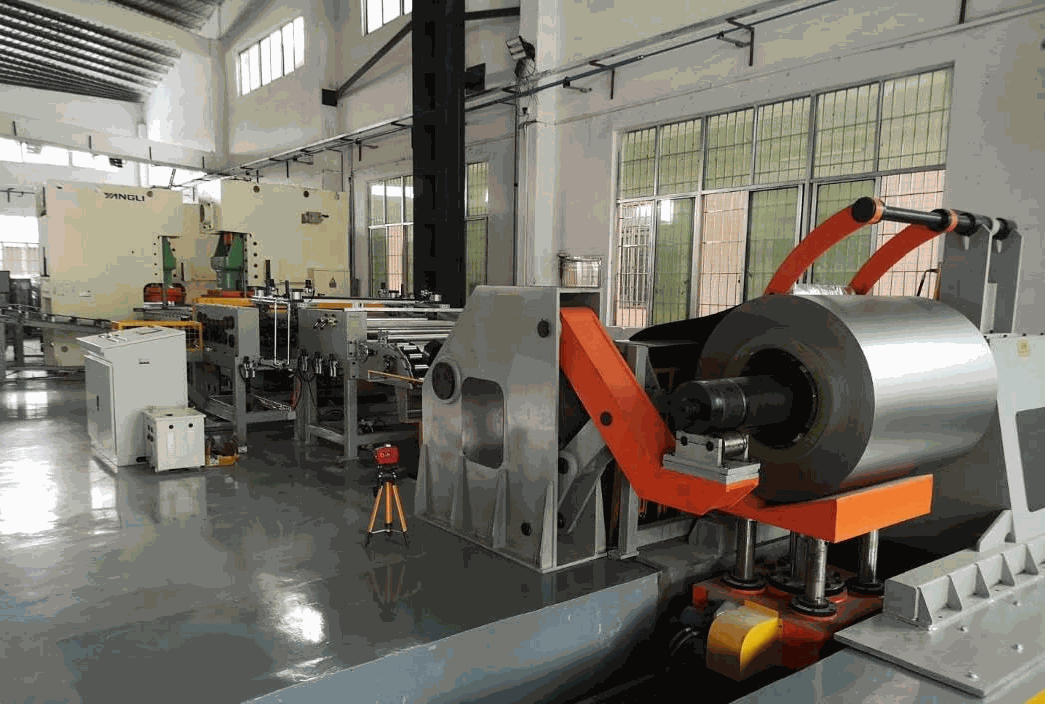

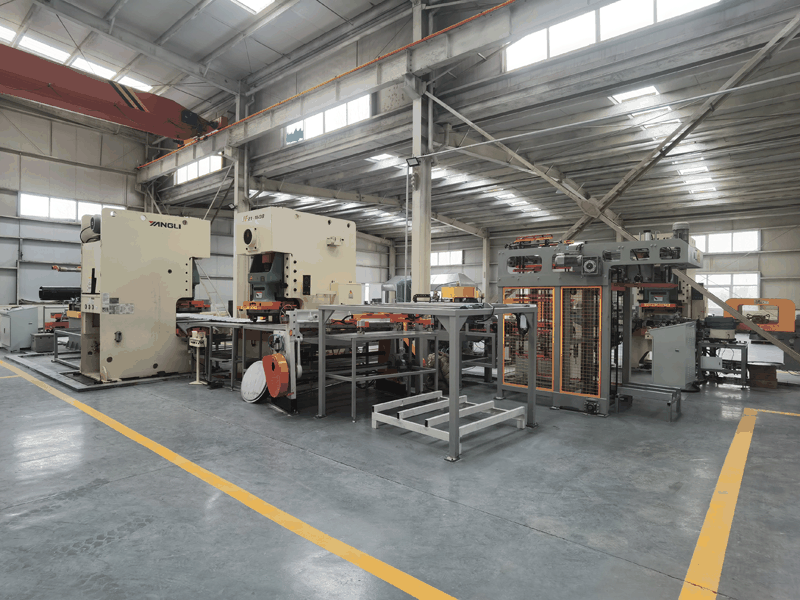

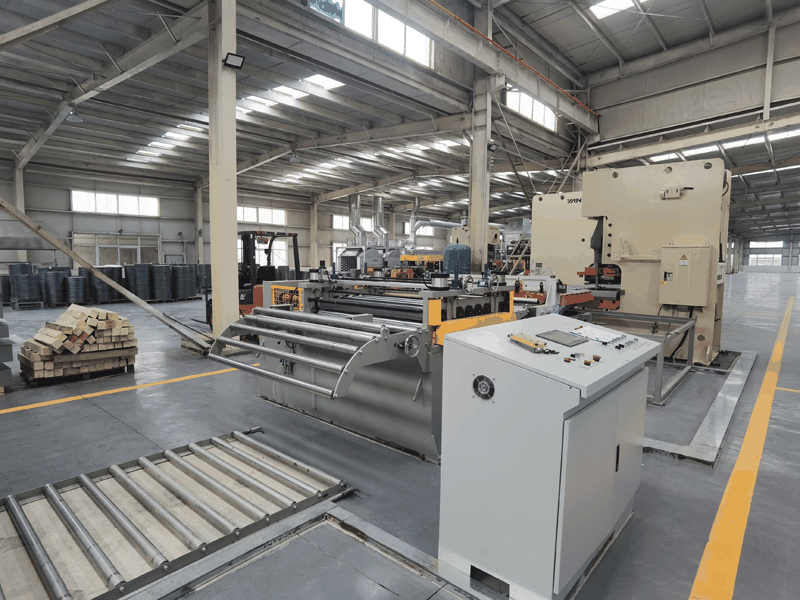

200L Drum Ends Production Line
200L Drum Ends Production Line
Equipment Features
Utilizes servo control technology to ensure high precision and excellent efficiency. The servo system employs imported brands, offering superior precision and stability compared to domestic alternatives.
The entire process features a high degree of automation and minimal labor requirements, effectively reducing production costs while ensuring consistent product quality.
High flexibility: Allows for rapid switching between the production of different items, such as closed-head drum lids and drum bottoms.
| Technical Parameters | |
| Sheet thickness | 0.5–1.2 mm |
| Sheet width | 600–1250 mm |
| Drum lid production rate | 24 pieces/minute |

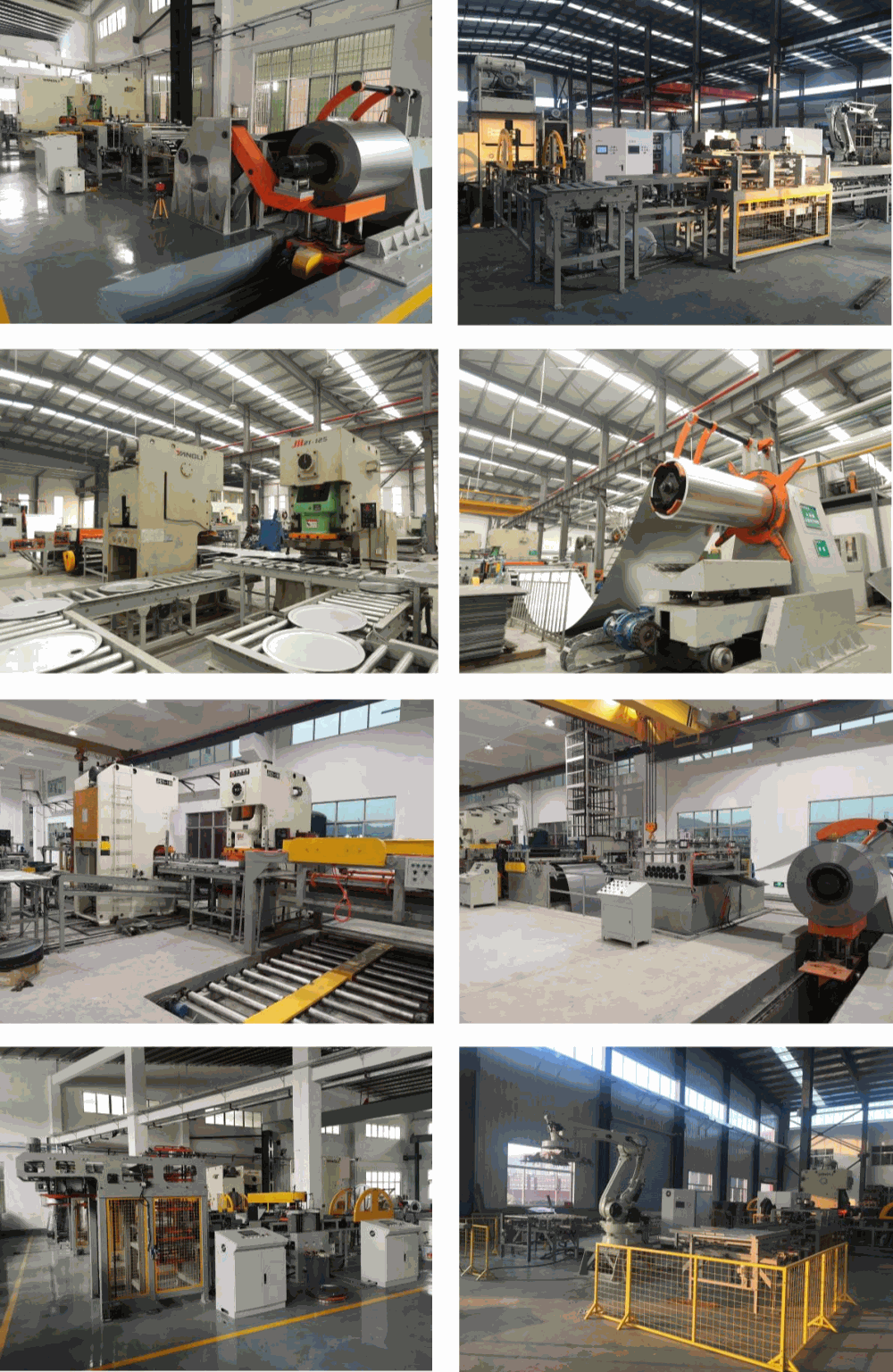

200L Drum End Production Line – Overview Diagram

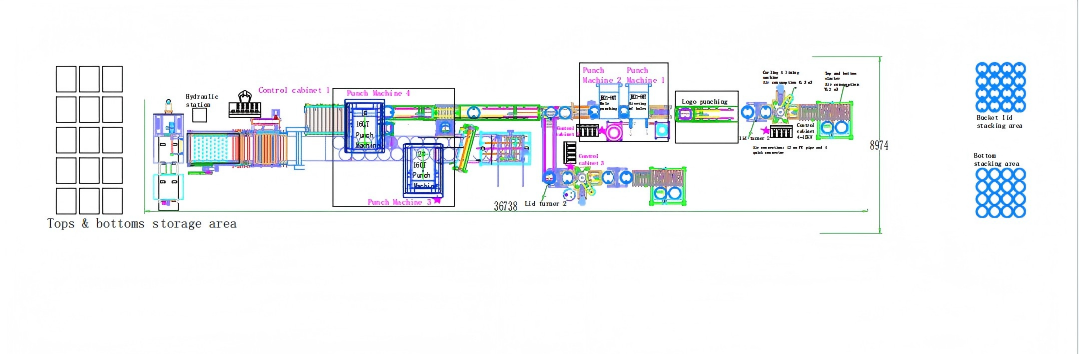

200L Drum End Production Line – Floor Plan
200L Drum End Production Line Specification Sheet
| Raw Material Coil Specifications | |
| Item | Specification |
| Material | Cold-rolled steel, galvanized steel sheet |
| Thickness Range | 0.8–1.2 mm |
| Width Range | 850–1250 mm |
| Coil Weight | ≤15 tons |
| Coil Inner Diameter | Φ480–520 mm, Φ580–620 mm |
| Coil Outer Diameter | ≤Φ1400 mm |
| Steel Drum Performance Requirements | |
| Item | Requirement |
| Applicable Standard | GB/T 325-2000 |
| Inspection Requirements | The produced steel drums must meet the inspection requirements for export drums. |
| Environmental Conditions | |
| Item | Condition |
| Installation Location | Indoor |
| Environment | Atmosphere containing mildly acidic gases |
| Ambient Temperature | Maximum: 45°C; Minimum: 0°C |
| Ambient Humidity | Monthly average humidity ≤80% |
| Utility Requirements (Water, Electricity and Air) | ||
| Utility | Item | Requirement |
| Circulating Cooling Water | Inlet Temperature | <30°C |
| Outlet Temperature | <40°C | |
| Pressure | 0.1–0.45 MPa | |
| Electricity | Voltage | 380 V |
| Frequency | 50 Hz | |
| Total Power | Approx. 50 kW | |
| Compressed Air | Pressure | 0.7 MPa |
| Flow Rate | 6 m³/min | |
